Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1997
>>
F 150 4WD Pickup V8-281 4.6L VIN W EFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>

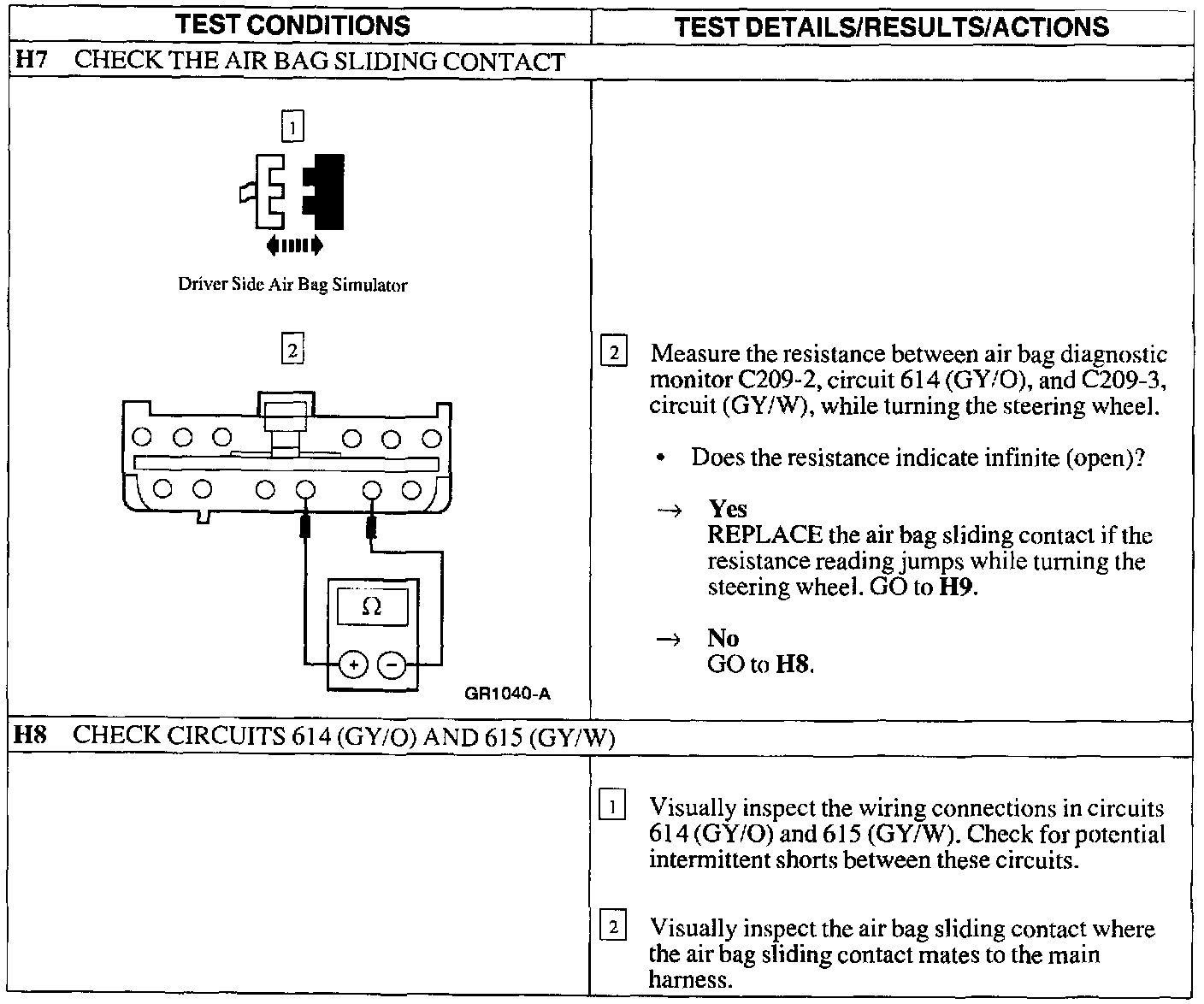

H : Driver Air Bag Module Circuit Low Resistance or Shorted
>>
H7 - H8
H7 - H8
