Air Door: Service and Repair

REMOVAL
1. Remove the plenum assembly.

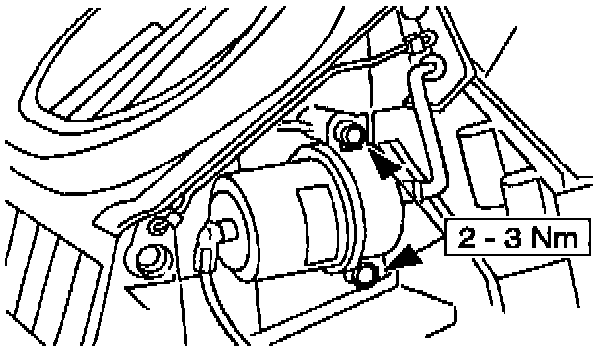

2. Remove the air inlet door vacuum control motor.
1. Disconnect the vacuum line.
2. Remove the air inlet door vacuum control motor screws.
3. Remove the air inlet door vacuum control motor.

INSTALLATION



1. To install, reverse the removal procedure.
