Blower Motor Switch: Service and Repair

REMOVAL

1. Remove the climate control head.

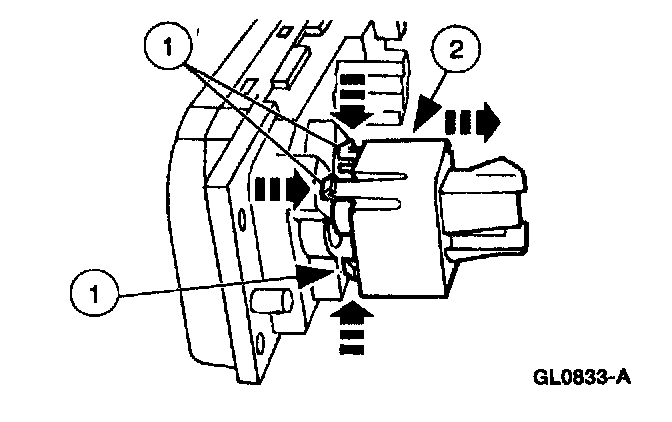

2. Remove the blower motor switch.
1. Depress the three tabs.
2. Remove the blower motor switch.

NOTE: The knob will drop off as the blower motor switch is removed.

INSTALLATION
1. To install, reverse the removal procedure.
