F 250 2WD HD Pickup V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With California Emissions
With California Emissions

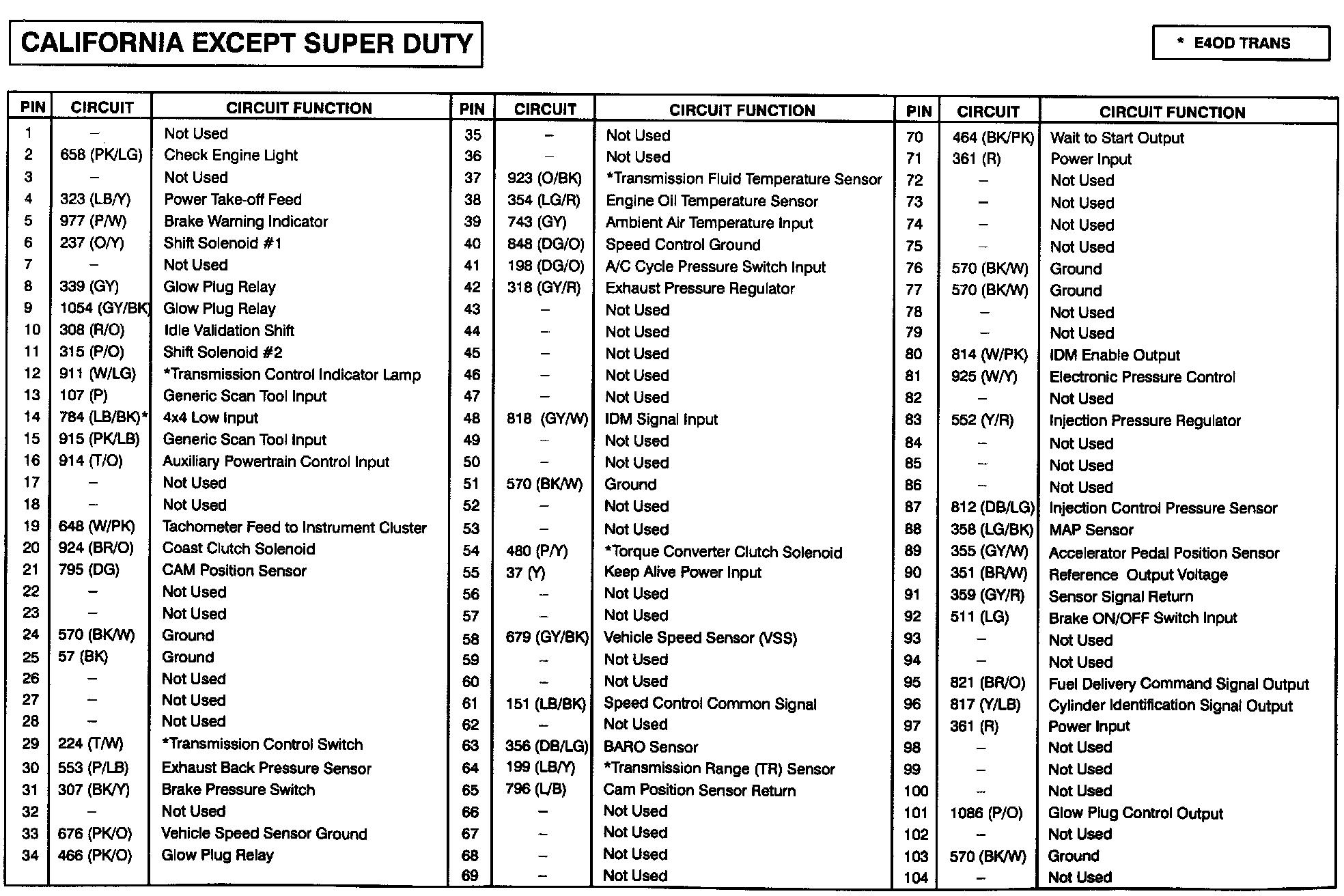

Powertrain Control Module (California) (Part 1 Of 2):
Powertrain Control Module (California) (Part 2 Of 2):
