Malfunction Indicator Lamp: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Remove instrument cluster opening finish panels.
3. Remove screws attaching instrument cluster to instrument panel.

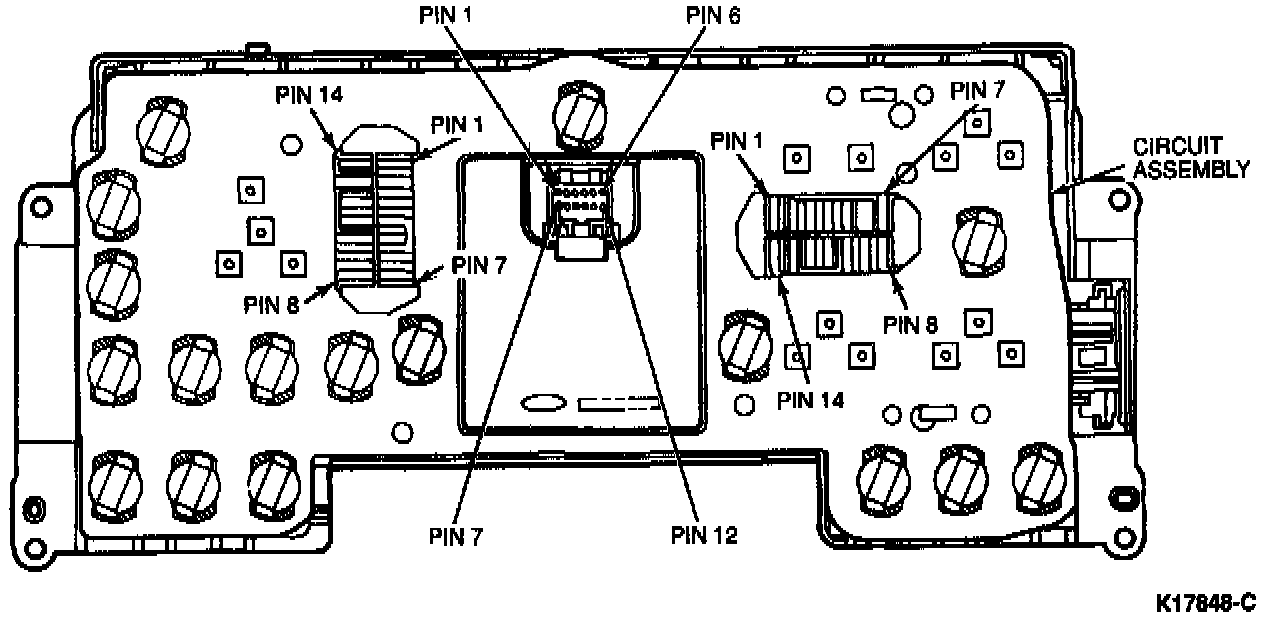

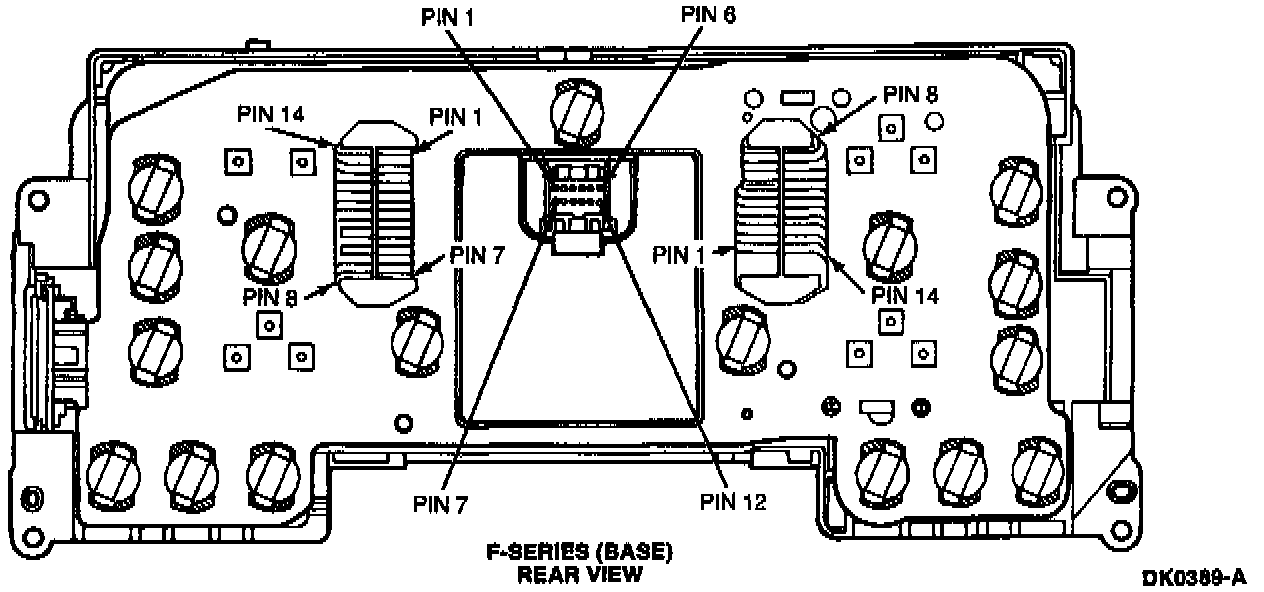

4. Pull instrument cluster rearward to provide access to the back of instrument cluster.
5. Turn the desired indicator/warning lamp counterclockwise.

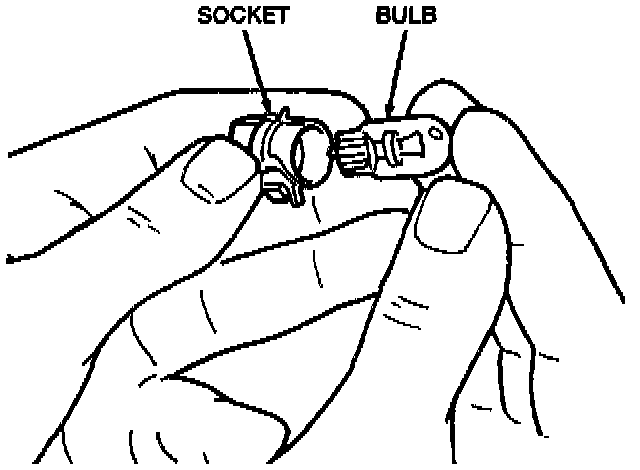

6. Remove bulb from its socket.

Installation
1. Follow removal procedure in reverse order.
2. When installing the instrument cluster bulb, make sure pins are properly seated into the instrument cluster backplate.
3. Check system operation.
