Electronic Brake Control Module: Service and Repair

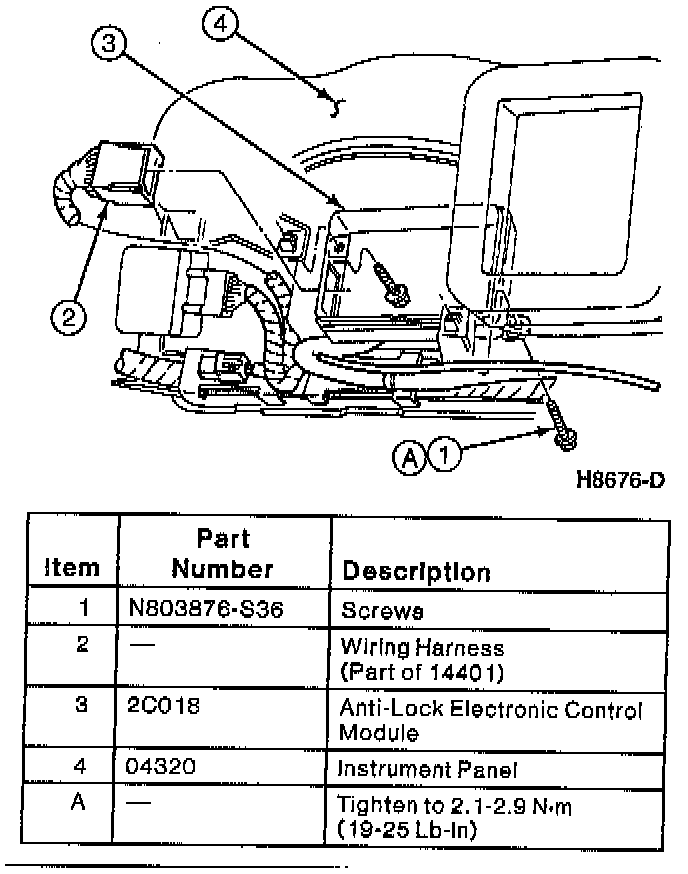

Anti-Lock Electronic Control Module Location:

REMOVAL
1. Disconnect the wiring harness from the anti-lock electronic control module by pressing the plastic tab on the connector and pulling the connector off.
2. Remove the two screws that retain the anti-lock electronic control module to the instrument panel. Remove the anti-lock electronic control module.
INSTALLATION
1. Follow removal procedure in reverse order, followed by a system check for proper operation.
2. Tighten screws to 2.1-2.9 Nm (19-25 inch lbs.).
