General Torque Specifications

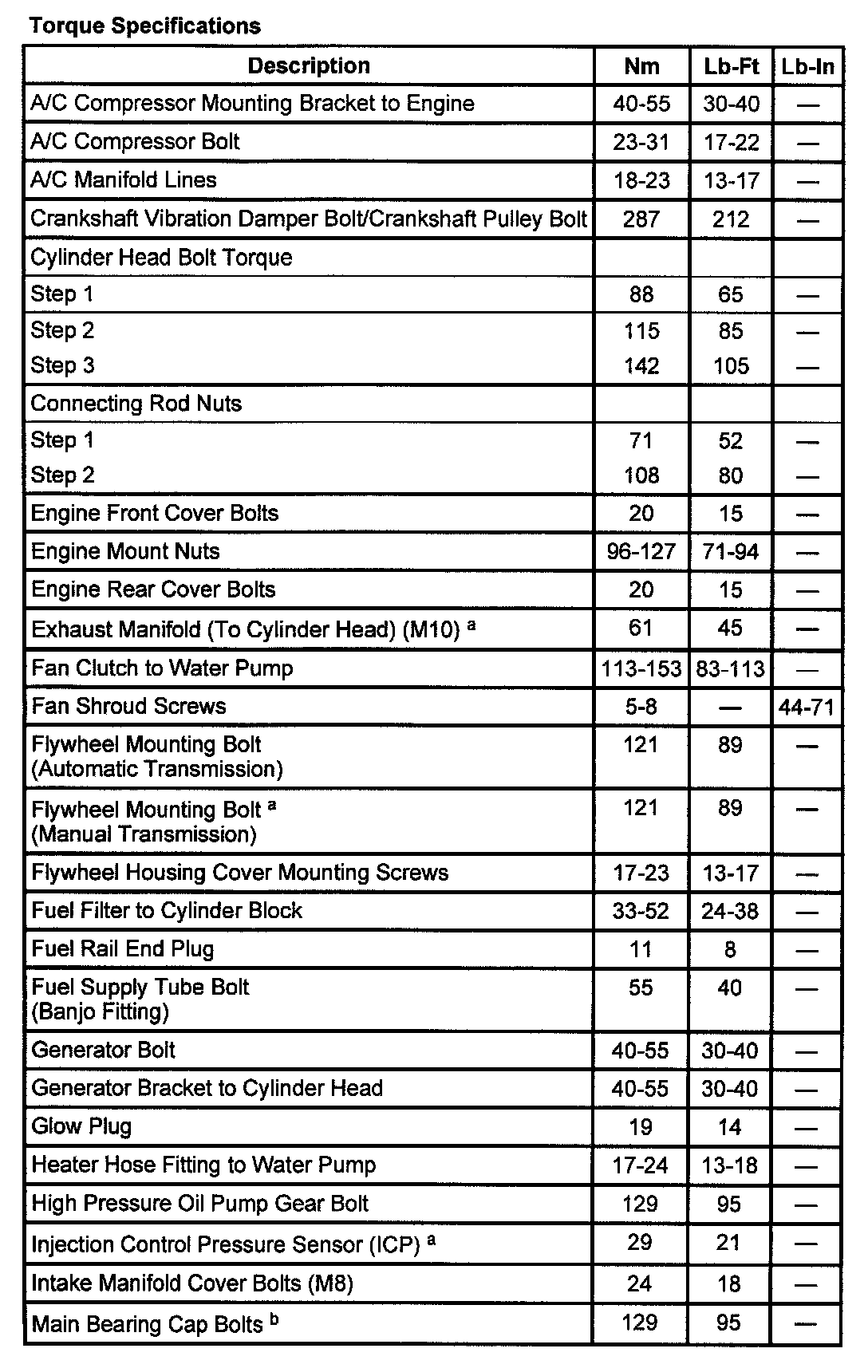

Torque Specifications:

Torque Specifications:

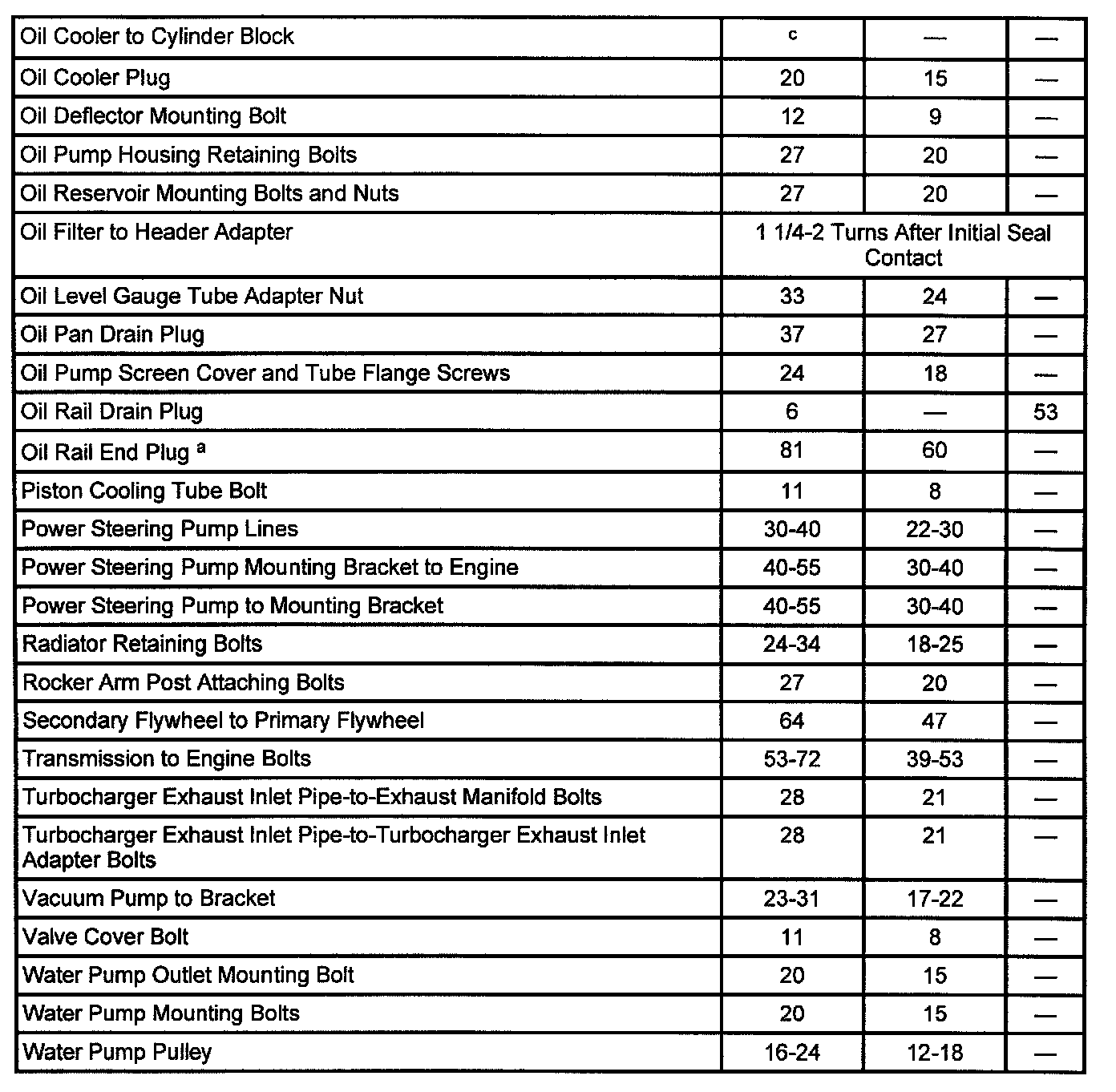

Standard Torque Charts:

(a) AppIy Threadlock© and Sealer EOAZ-19554-AA or equivalent meeting Ford specification WSK-M2G351-A6 (Type II) to all threads prior to assembly.

(b) Tighten four main bearing cap bolts to 102 Nm (75 lb-ft) before final torque is applied.

(c) See Standard Torque charts.
