22 - Engine Noise Under Hood
22 - Engine Noise Under Hood
Chart 22 (Part 1 of 2):

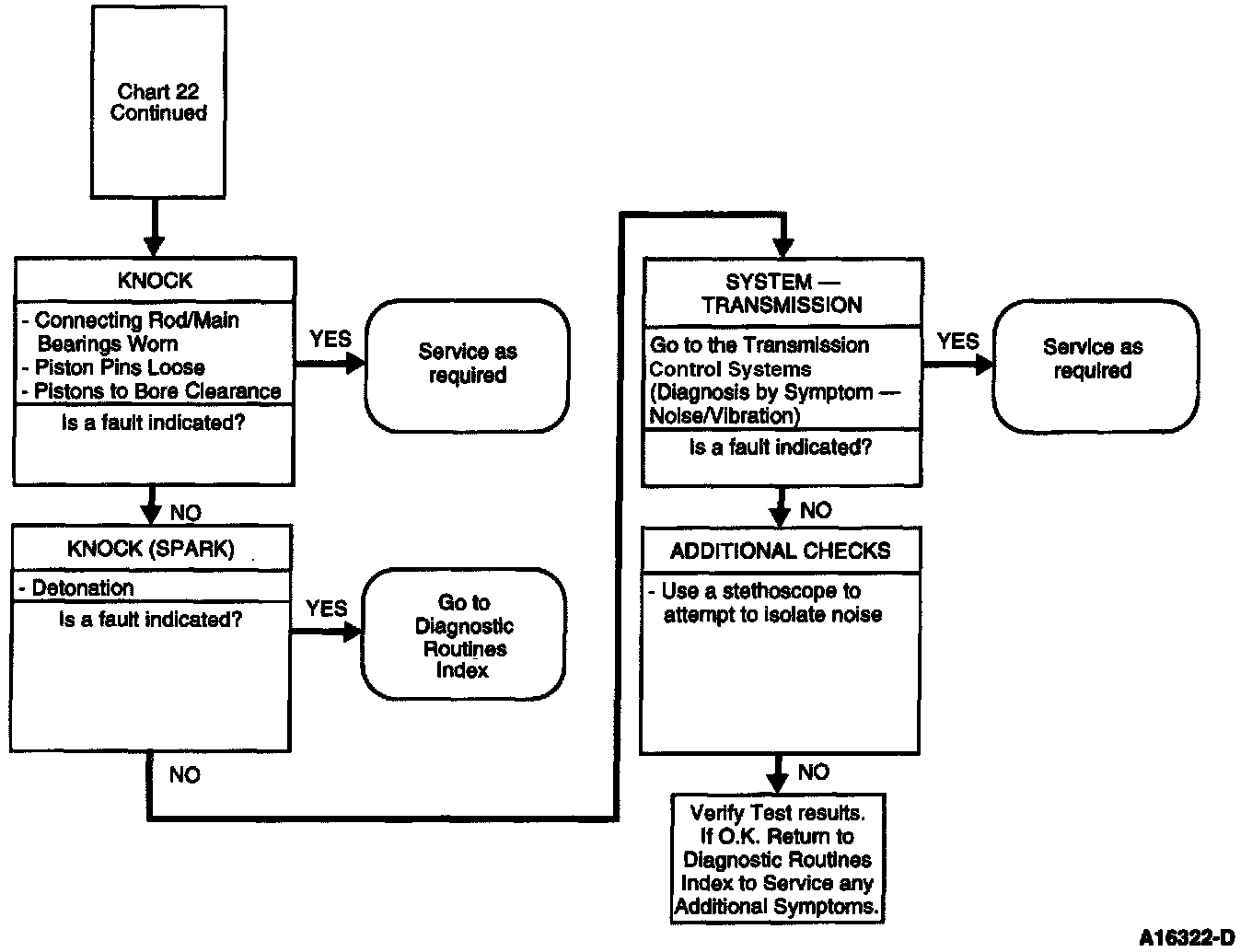

Chart 22 (Part 2 of 2):
