Rear Antilock Brakes (RABS)
There are times when a customer concern will not cause the yellow ABS warning indicator to illuminate or a code to be stored.

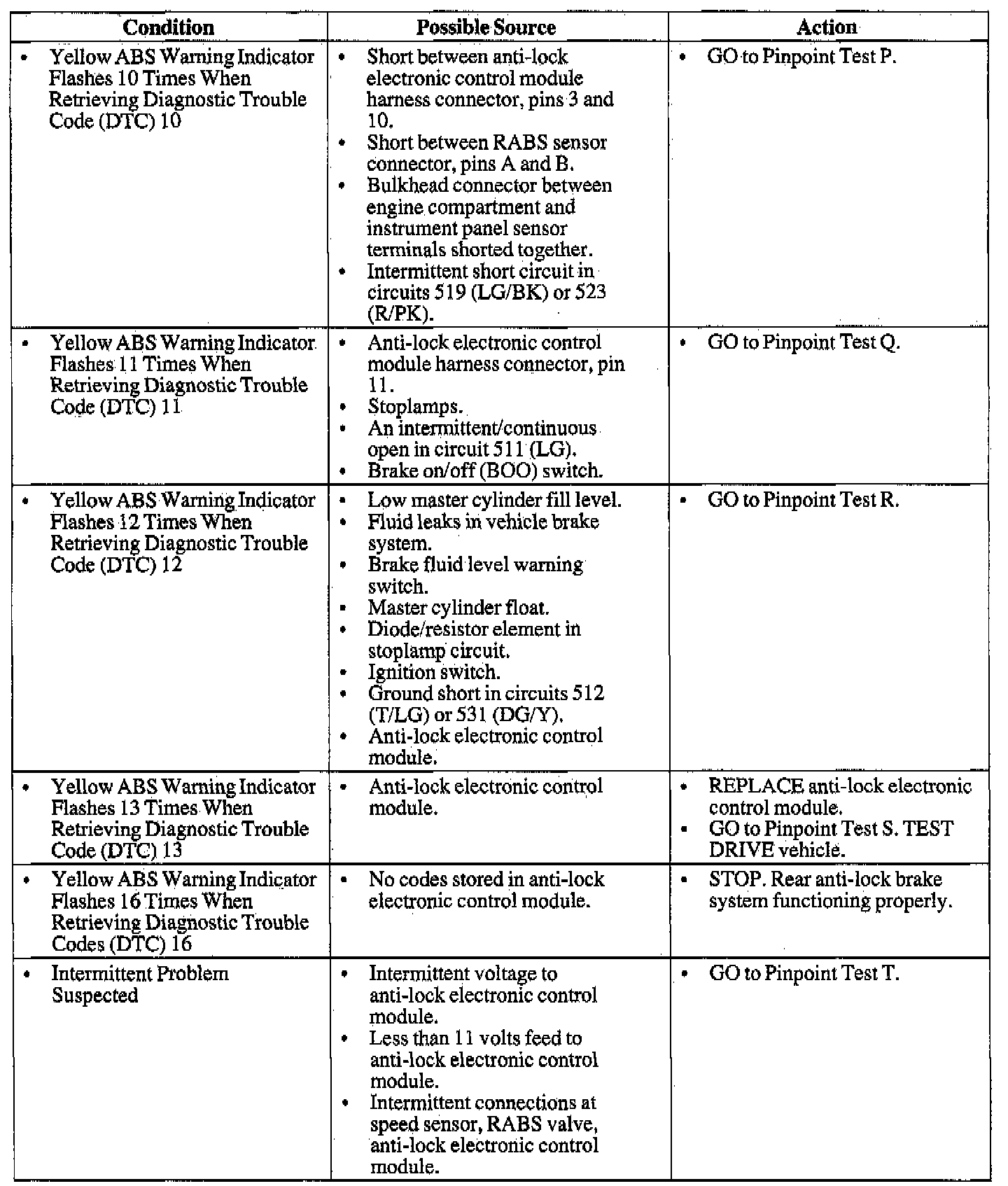

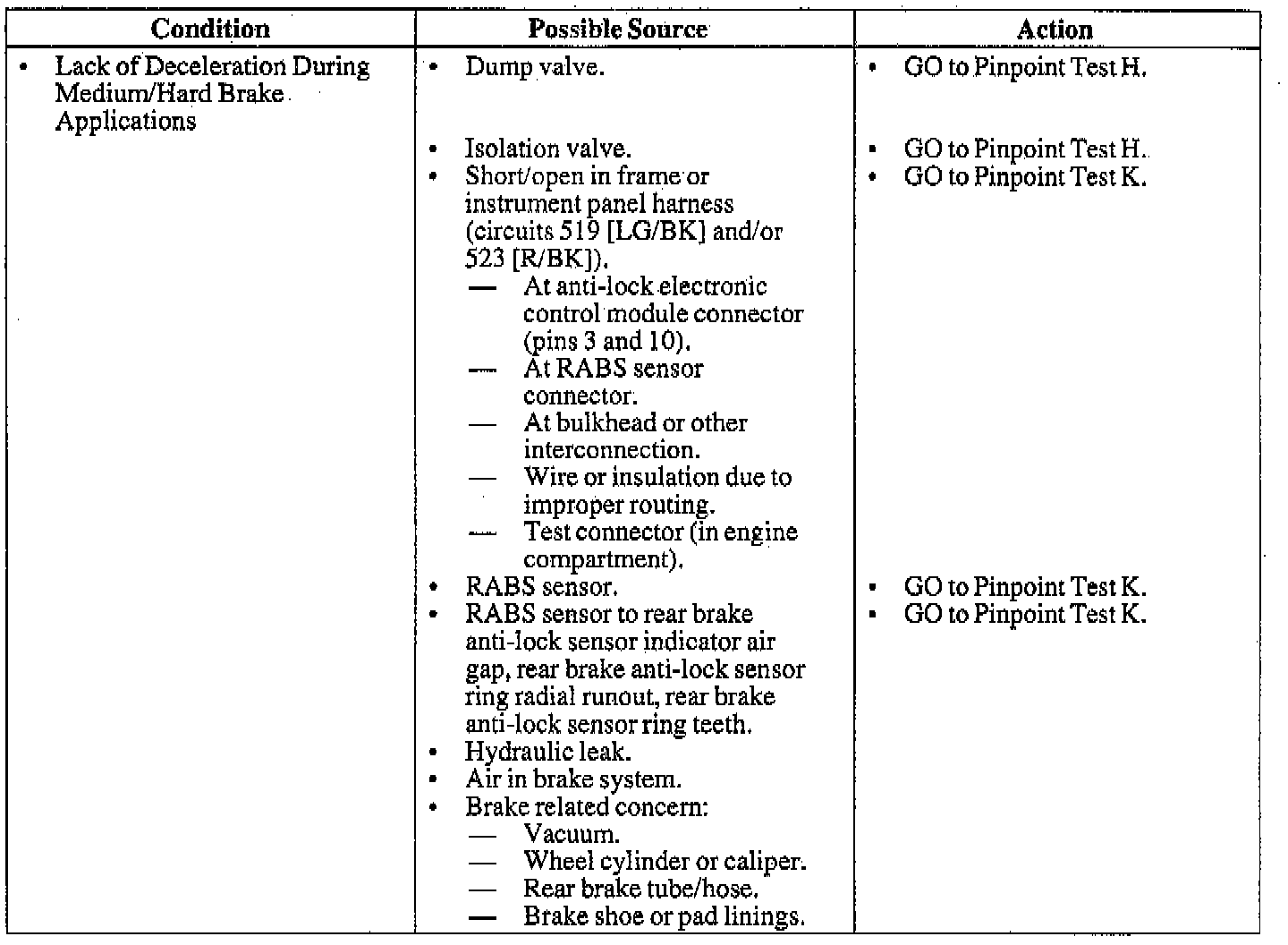

The Symptom Chart gives the technician a starting point in resolving these types. of concerns. The chart also describes conditions that will illuminate the yellow ABS warning indicator.
Note: Both the red BRAKE warning indicator diagnosis procedure and test drive are required prior to performing the tests in this section. Failure to perform these procedures will greatly diminish the effectiveness of the diagnosis.
