Parking Lamp: Service and Repair
REMOVALWARNING: THE HALOGEN BULB CONTAINS GAS UNDER PRESSURE. THE BULB MAY SHATTER IF THE GLASS ENVELOPE IS SCRATCHED OR IF THE BULB IS DROPPED. HANDLE THE BULB CAREFULLY. GRASP THE BULB ONLY BY ITS BASE. AVOID TOUCHING THE GLASS ENVELOPE.
NOTE: The headlamp bulb should not be removed from the headlamp until just before a replacement bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed from the headlamp.
1. Raise and support the hood.

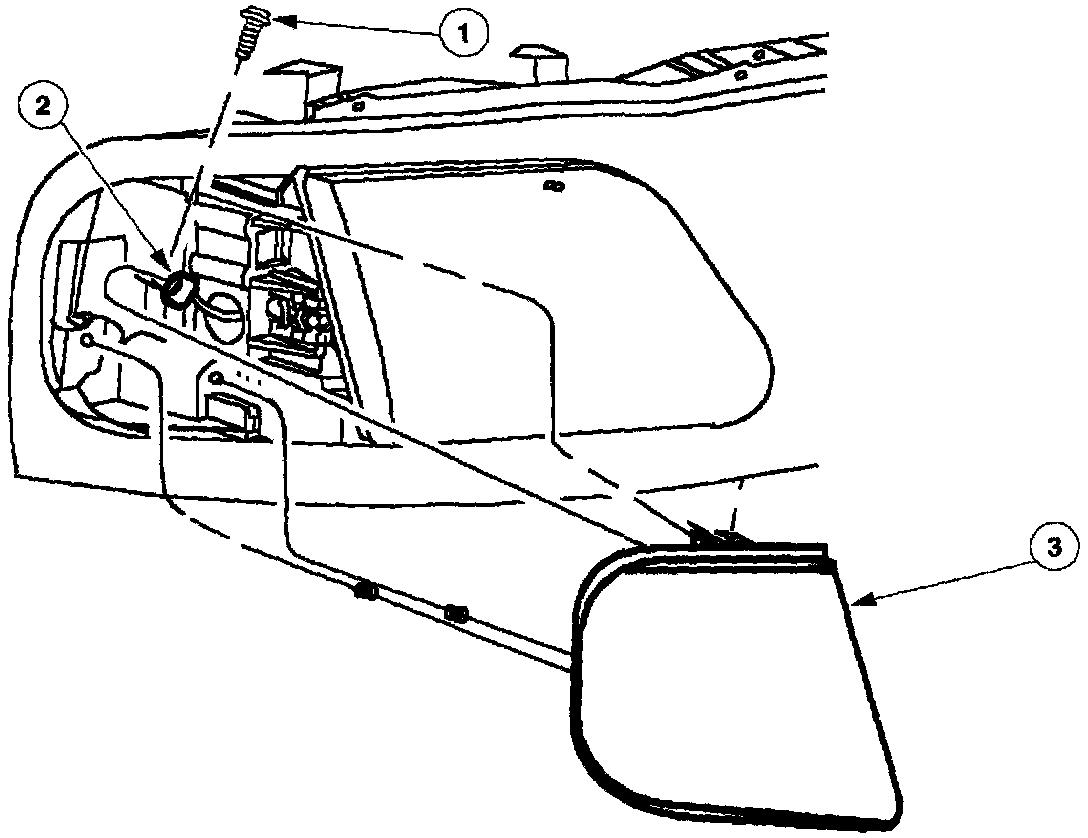

2. Remove the parking lamp.
1. Remove the screw and carefully lift the lamp out.
2. Disconnect the electrical connector.
3. Remove the parking lamp.
3. Turn the parking lamp socket counterclockwise and remove the bulb.
INSTALLATION
WARNING: THE HALOGEN BULB CONTAINS GAS UNDER PRESSURE. THE BULB MAY SHATTER IF THE GLASS ENVELOPE IS SCRATCHED OR IF THE BULB IS DROPPED. HANDLE THE BULB CAREFULLY. GRASP THE BULB ONLY BY ITS BASE. AVOID TOUCHING THE GLASS ENVELOPE.
NOTE: The headlamp bulb should not be removed from the headlamp until just before a replacement bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed from the headlamp.
1. To install, reverse the removal procedure.
