Cruise Control Servo Cable: Adjustments

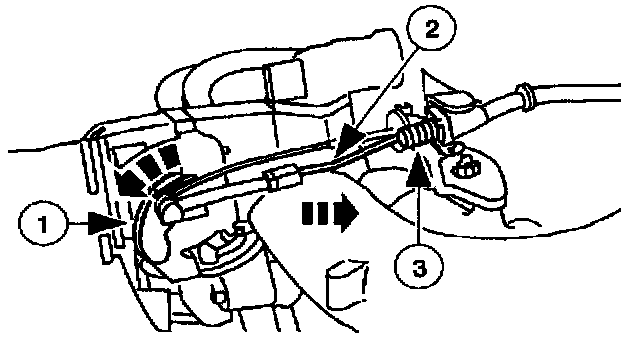

1. Remove the actuator cable clip.





2. Adjust the actuator cable.
1 Set the throttle body cam to the closed position.
2 Pull on the actuator cable to remove any slack.
3 Back off the actuator cable one notch.

NOTE: The actuator cable must not be pulled tight for proper operation.





3. Hold the (A) speed control actuator cable and insert the (B) actuator clip securely.
