Power Steering Line/Hose: Testing and Inspection

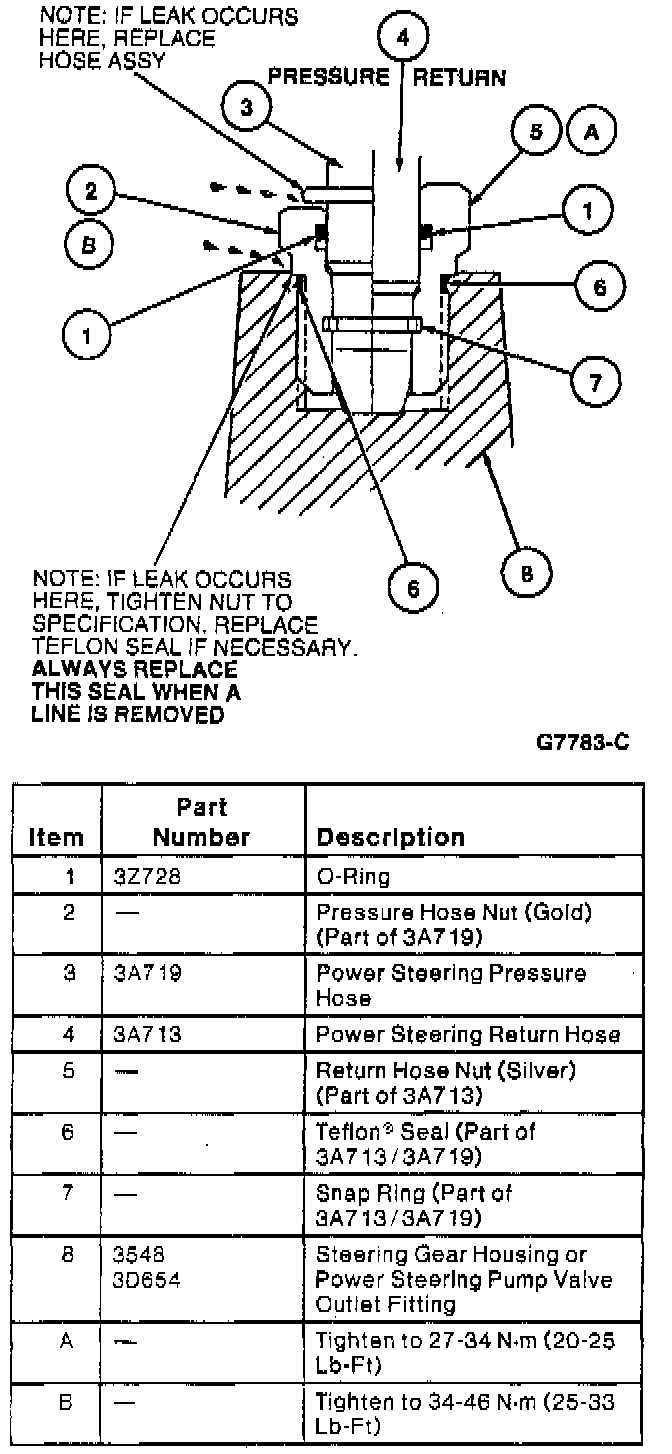

If a leak occurs between the tubing and tube nut, replace the hose assembly. If a leak occurs between the tube nut and the pump outlet, replace the plastic washer.
