G204

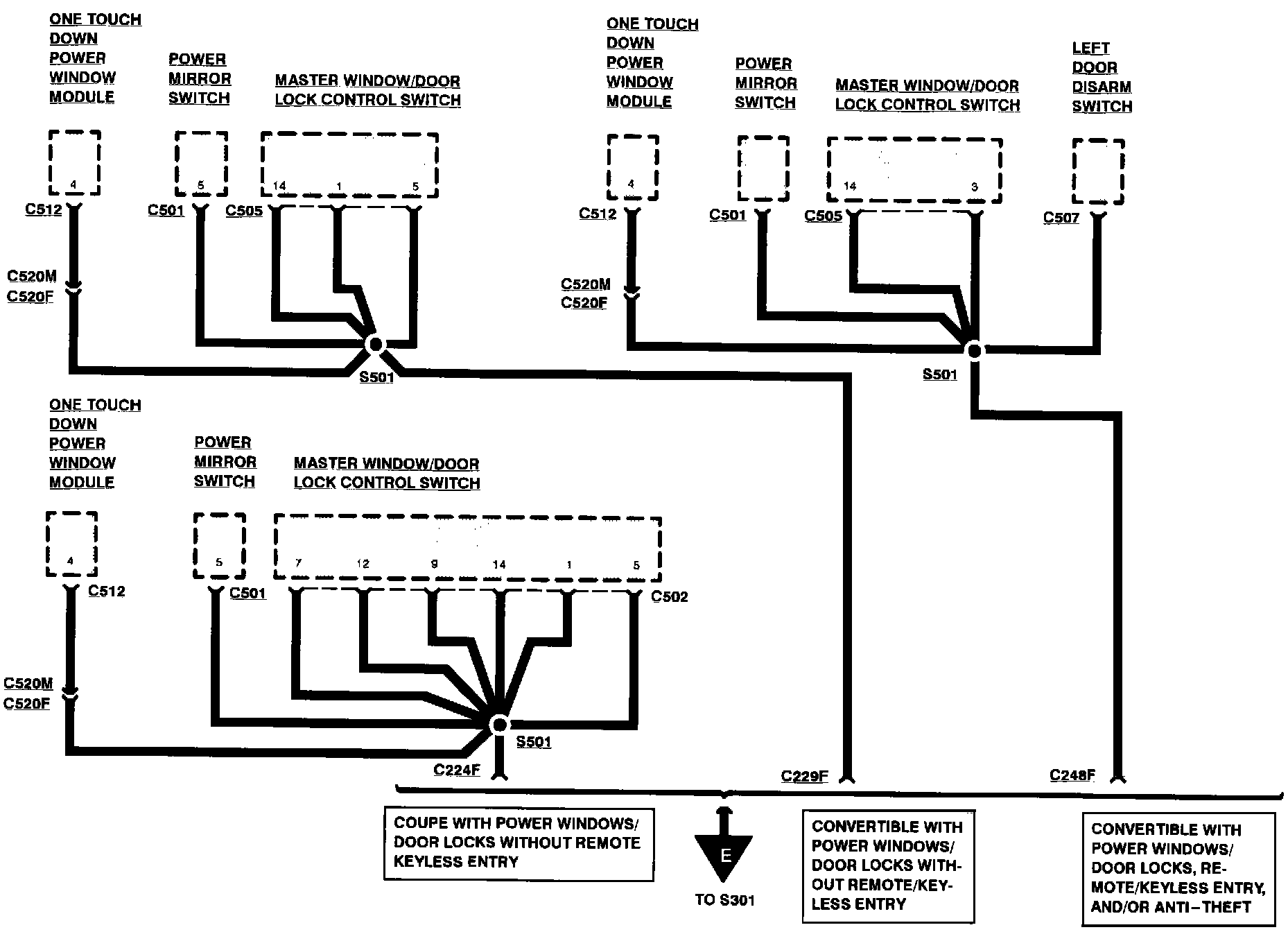

Grounds (G204):




Grounds (G204):




Grounds (G204 & G300):




Grounds (G204 & G300):




Grounds (G204 & G300):




Grounds (G204 & G300):
