Probe L4-121 2.0L DOHC VIN A MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Connector Views

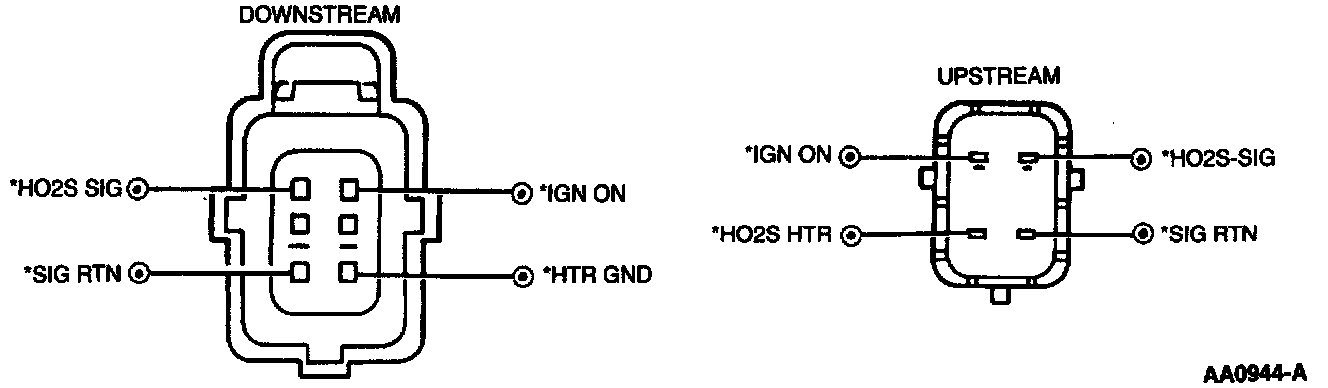

Connector Views
Probe:
Connector Test Pin Numbers:
