Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

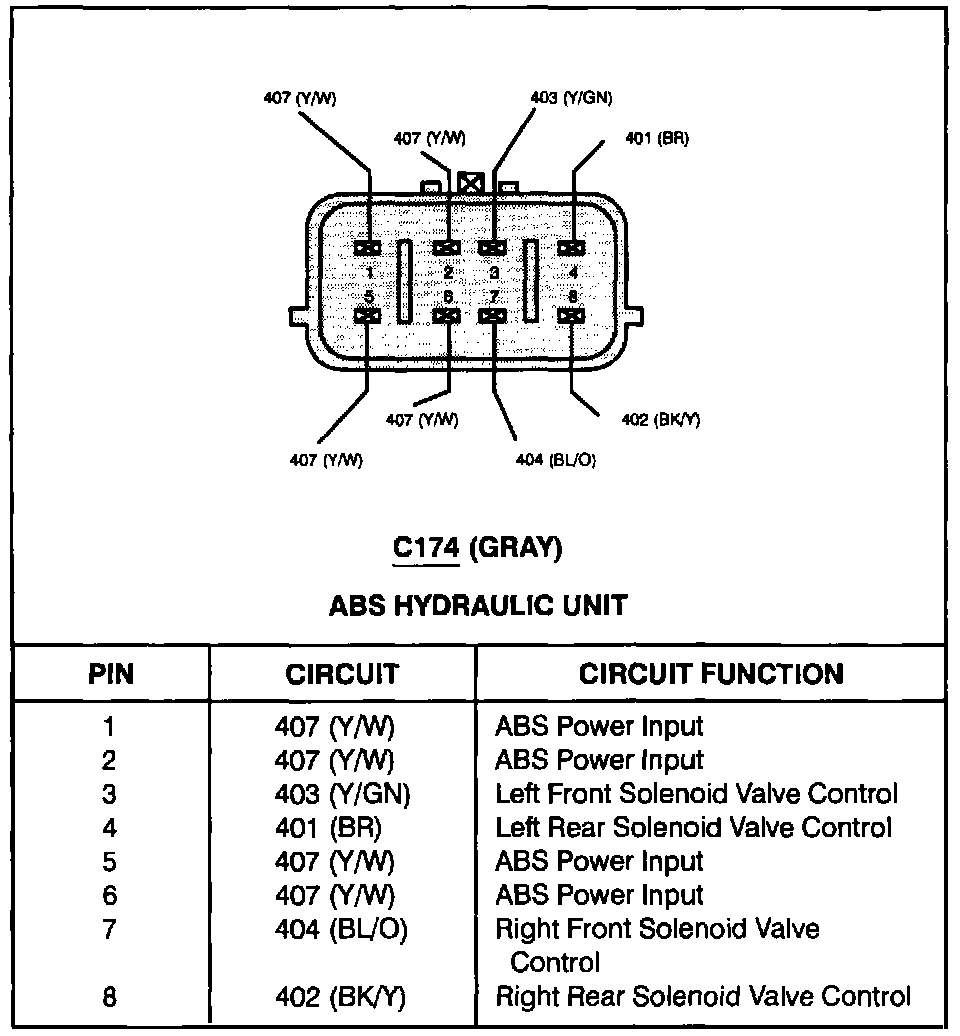

Anti-Lock Brake System Hydraulic Unit (C174):
