Home >> Ford >> 1997 >> Probe V6-153 2.5L DOHC VIN B MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Clutch, A/T >> Forward Clutch

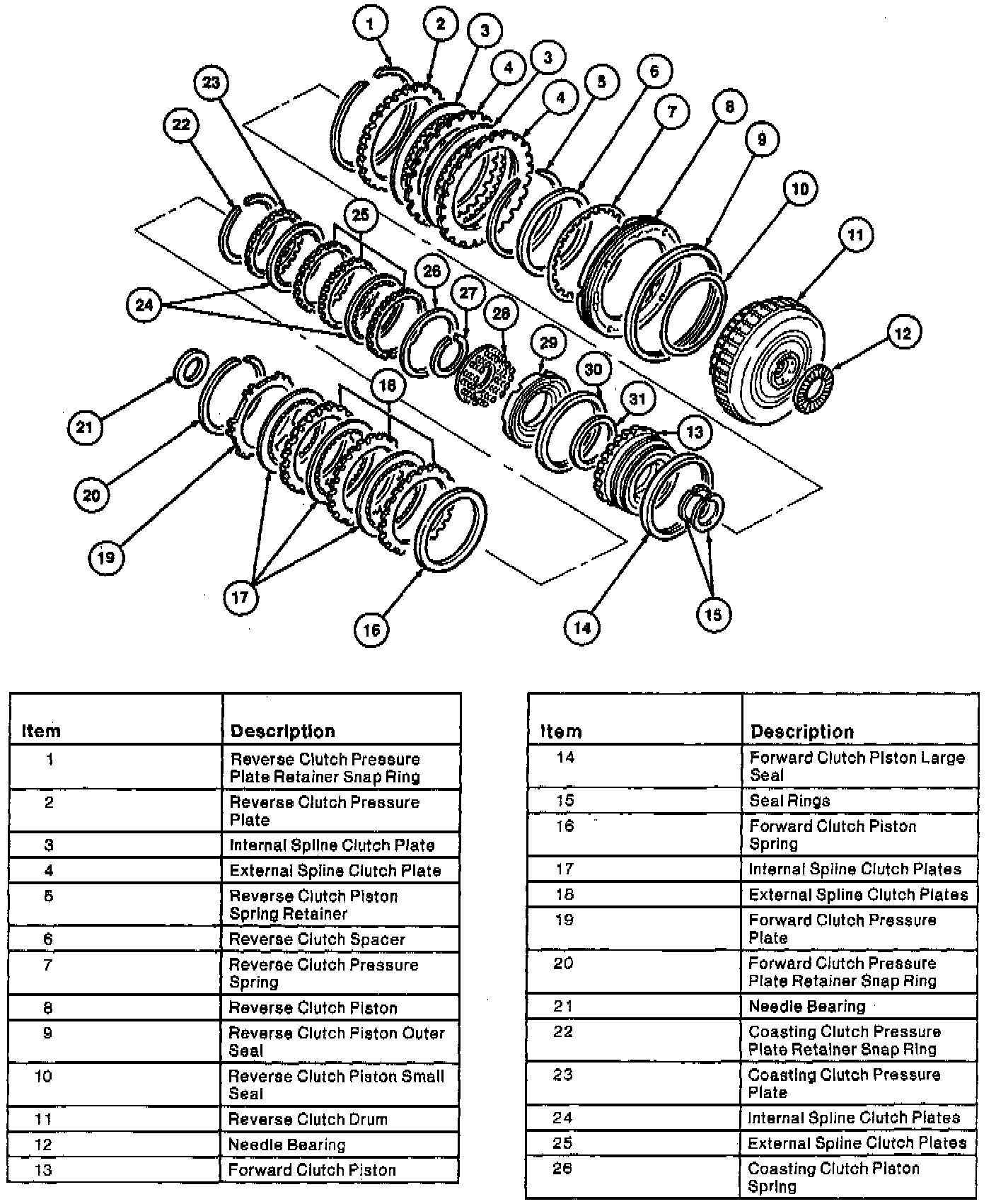

Forward Clutch

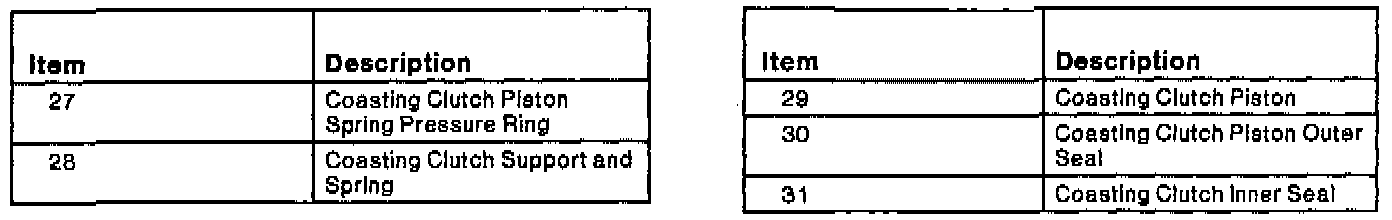

Part 1 Of 2:

Part 2 Of 2:
