Home >> Ford >> 1997 >> Probe V6-153 2.5L DOHC VIN B MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Master Cylinder >> Master Cylinder, ABS

Master Cylinder, ABS

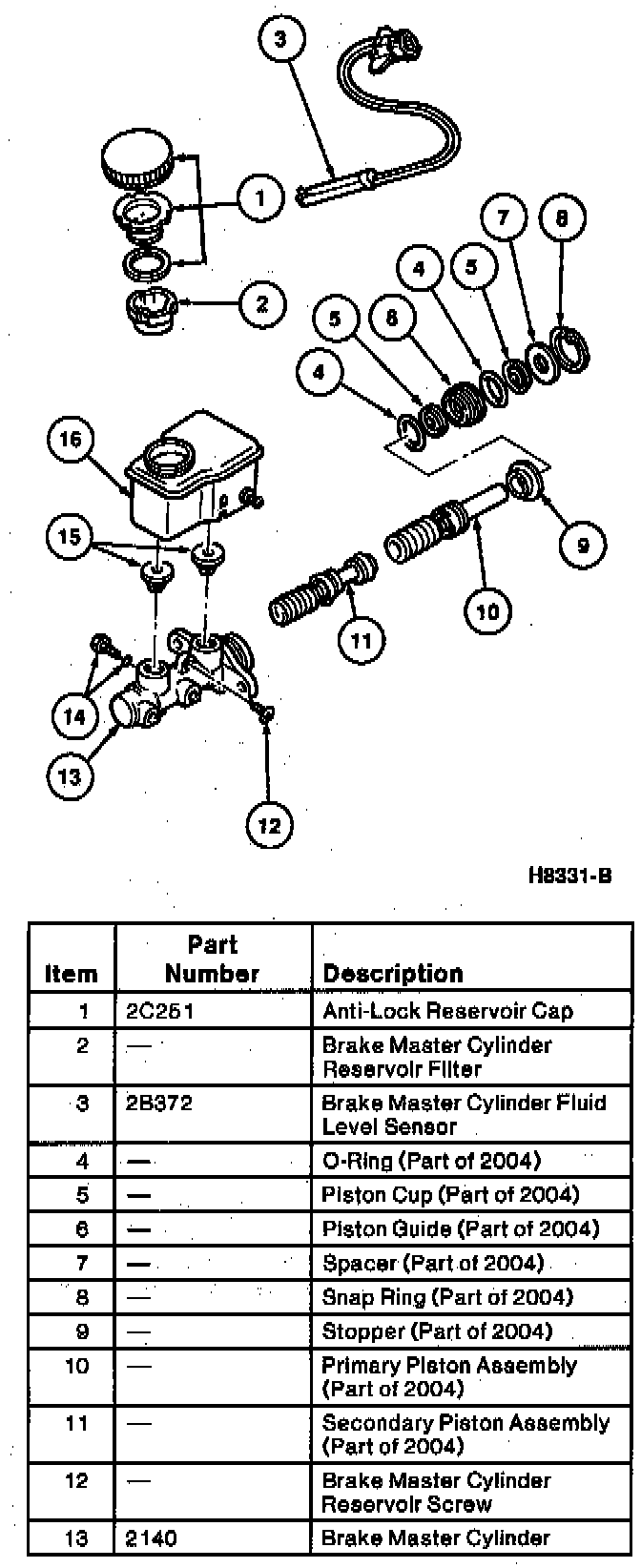

(Part 1 Of 2):

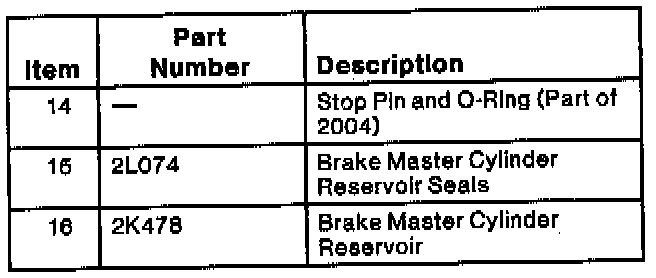

(Part 2 Of 2):
