Home >> Ford >> 1997 >> Probe V6-153 2.5L DOHC VIN B MFI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Tune-up and Engine Performance Checks >> Fuel Pressure >> Locations >> Connector Locations >> Diagrams

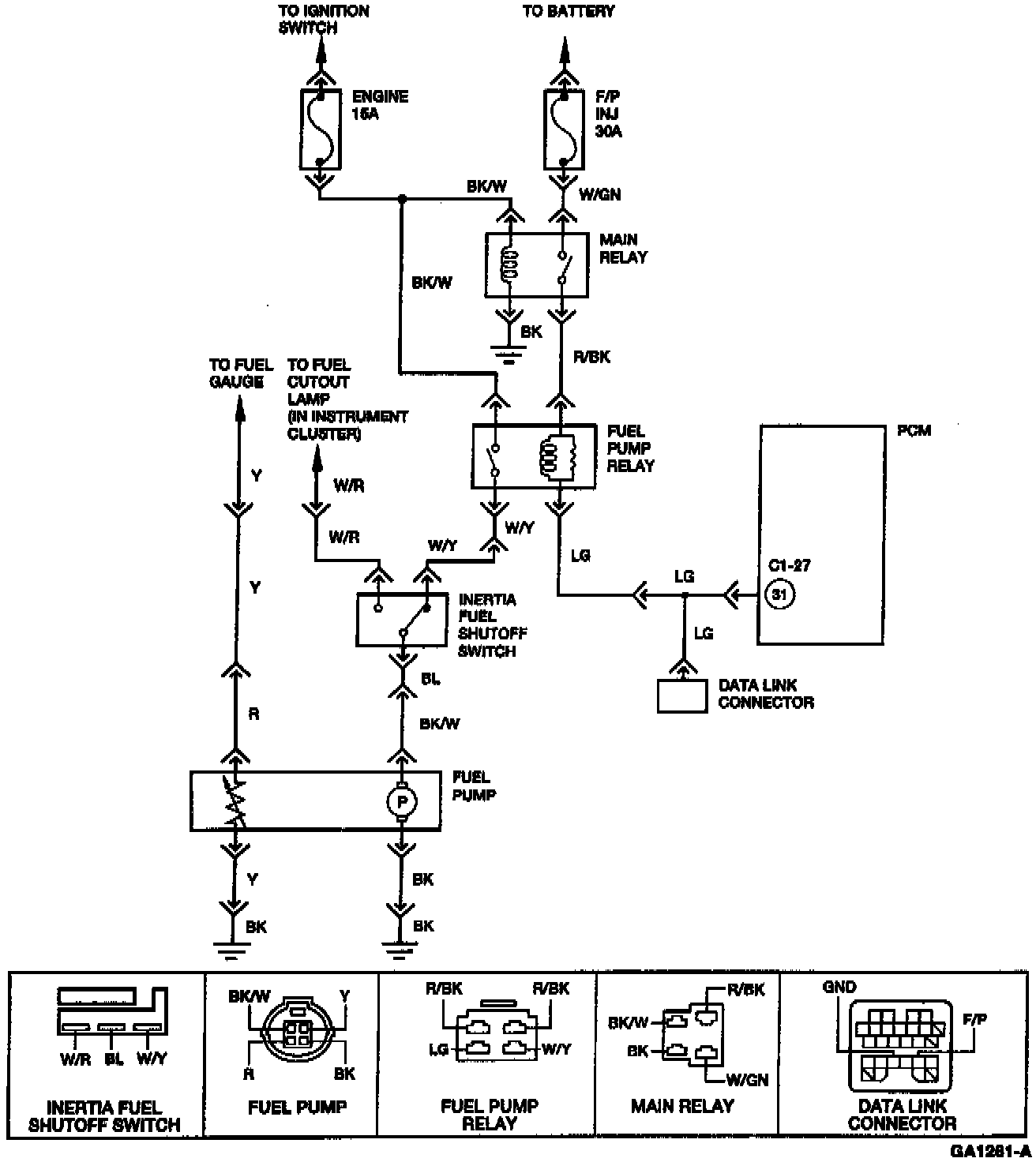

Connector Locations: Diagrams
