Climate Control Assembly

CLIMATE CONTROL ASSEMBLY

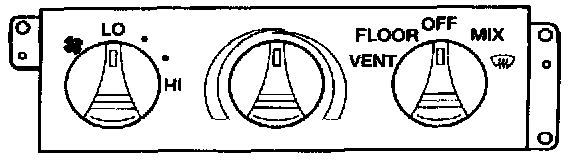

The climate control assembly consists of three main parts:
- Air flow control
- Temperature control
- Blower motor control





Air Flow Control
The standard climate control assembly includes positions for VENT FLOOR, OFF, MIX, and DEFROST.

Temperature Control
Temperature control of the heating and defrosting system is determined by the position of the temperature control knob (between COOL - left side, and WARM - right side) on the climate control assembly, and is accomplished by means of the A/C temperature cable between the temperature control knob and the temperature blend door

Blower Motor Control
The blower motor control knob determines the speed at which the blower motor operates. Each position of the blower motor control knob is detented for positive engagement.
