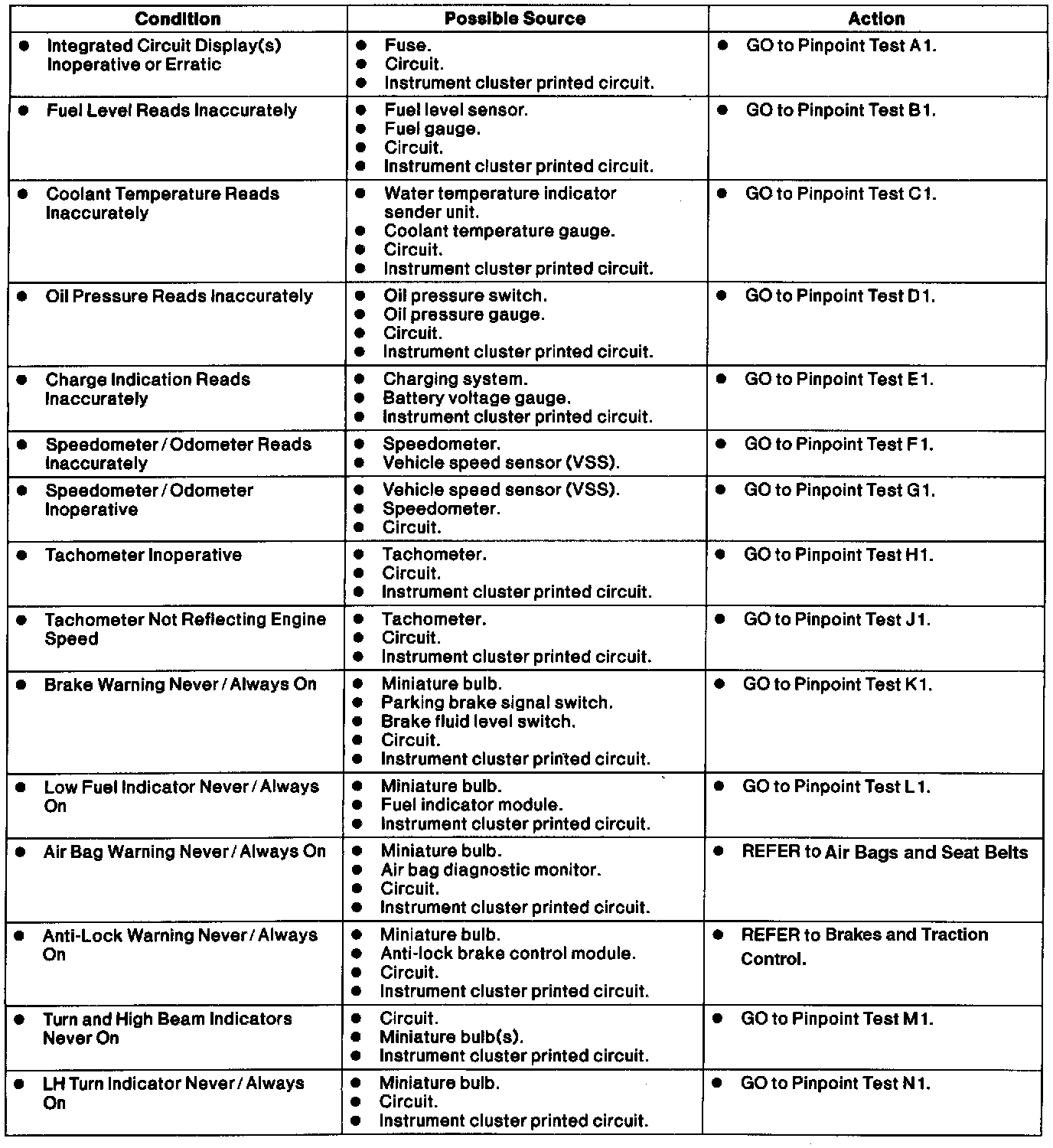

Conventional Instrument Cluster

Part 1 Of 2:









NOTE: Use 73 Digital Multimeter 105-R0051 and Instrument Gauge System Tester 014-R1063 or equivalent to perform electrical pinpoint tests.
