Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Engine Compartment Fuse Box
Engine Compartment Fuse Box

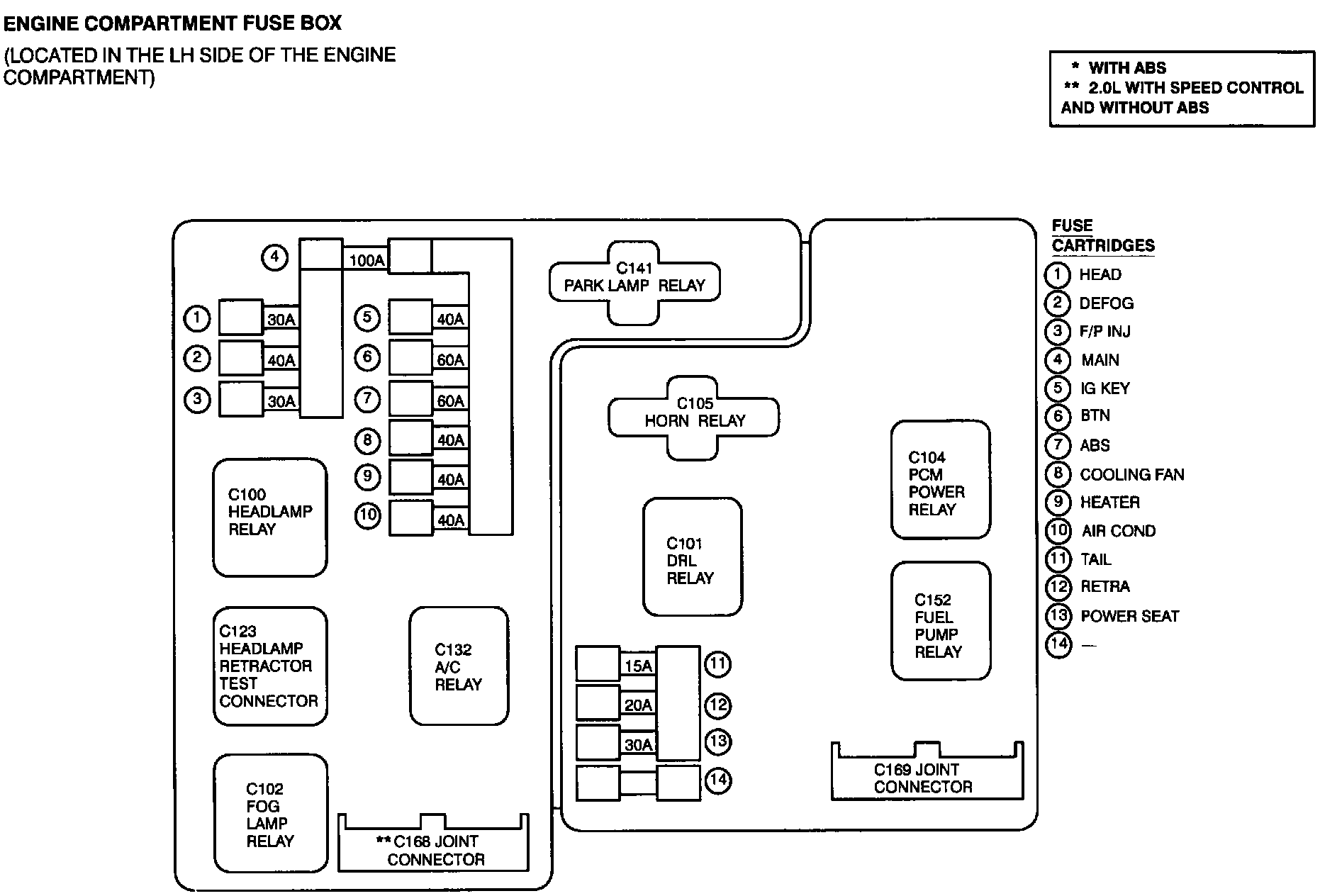

Engine Compartment Fuse Box (Part 1 Of 2):
Engine Compartment Fuse Box (Part 2 Of 2):
