Four Wheel Anti-Lock Brake System (4WABS)

Anti-Lock Electronic Control Module (Part 1 Of 2):

Anti-Lock Control Module (Part 2 Of 2):

Anti-Lock Hydraulic Control Unit Connector:

ABS Diode Connector (Part 1 Of 2):

ABS Diode Connector (Part 2 Of 2):

ABS Power Relay Connector:

Rear Sensor Connector:

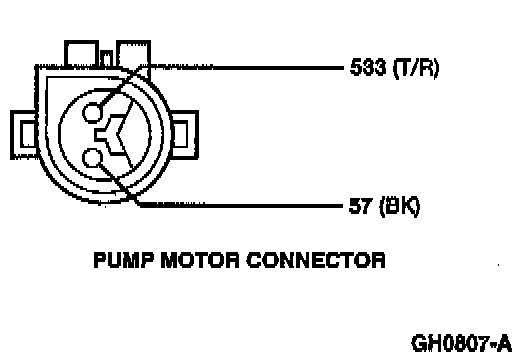

Pump Motor Connector:

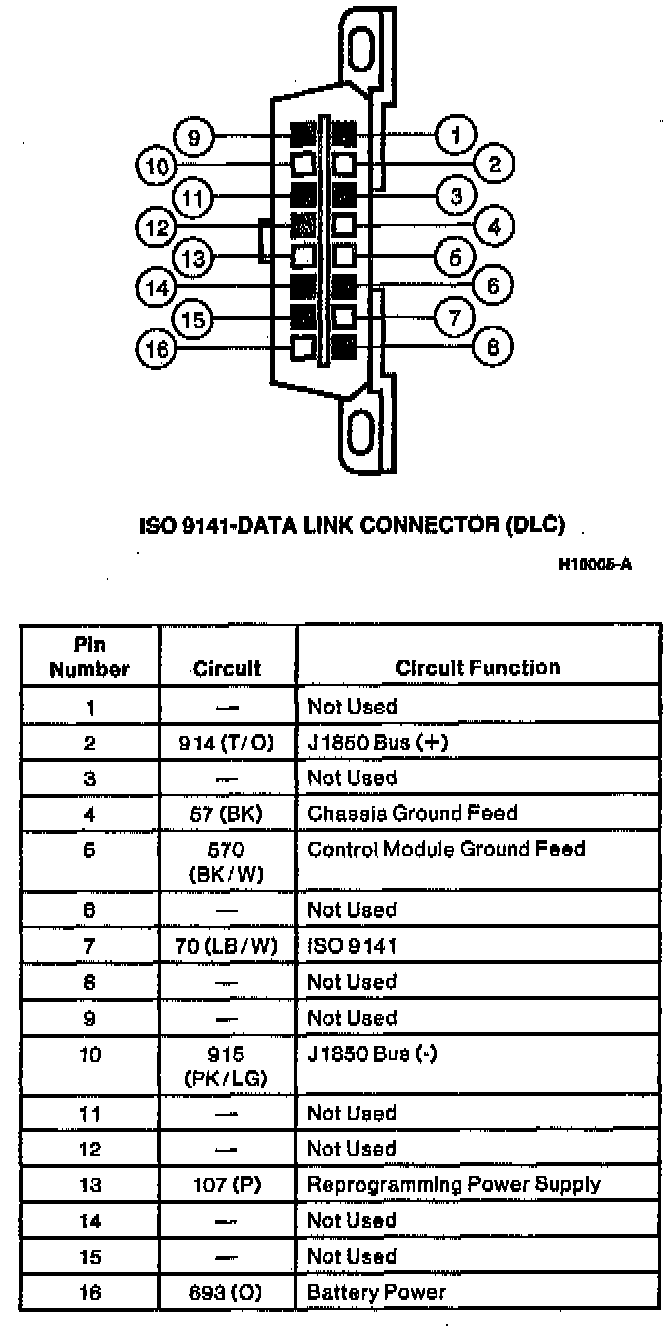

ISO 9141-Data Link Connector (DLC):

Front Sensor Connectors:

G-Switch Connector:
