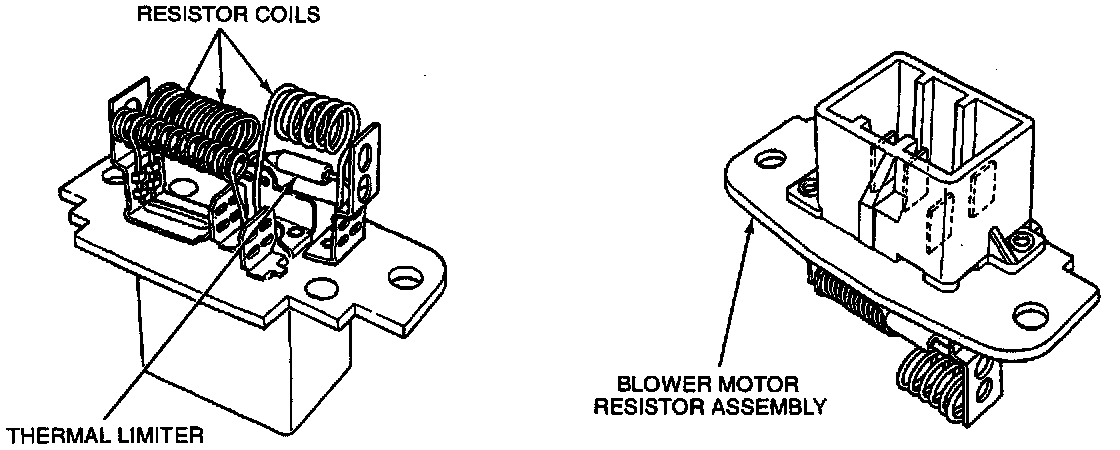

Blower Motor Resistor

REMOVAL
1. Disconnect battery ground cable.
2. Disconnect the wire connector from the heater blower motor switch resistor, located on the A/C evaporator housing.
3. Remove two screws attaching the heater blower motor switch resistor to the A/C evaporator housing then remove the heater blower motor switch resistor.

INSTALLATION
1. For installation, follow removal procedures in reverse order.
2. Check system for proper operation.
