Heater Blower Motor Switch
Heater Blower Motor Switch

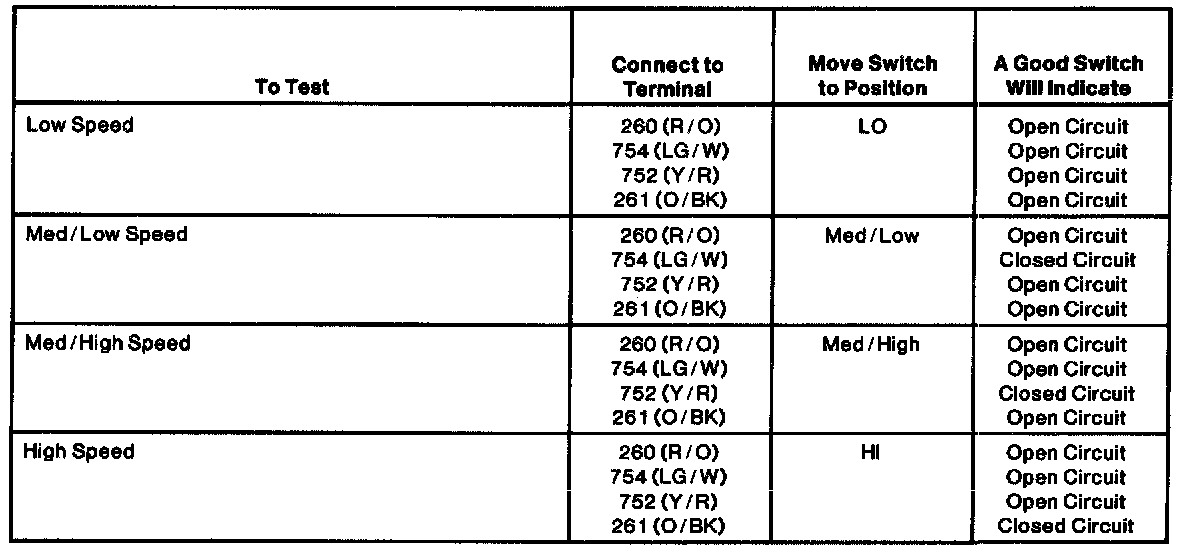

To test the heater blower switch for continuity, connect Rotunda 73 Digital Multimeter 105-R0051 or equivalent and proceed with the steps in the
Heater Blower Motor
Test Chart.
