Electrical Diagrams

Engine Controls (With Sequential Fuel Injector) (Part 1 Of 7):

EVAPORATIVE EMISSIONS CANISTER PURGE SOLENOID
FUEL PUMP MODULE
FUEL PUMP RELAY
INERTIA FUEL SHUT-OFF
PCM POWER DIODE
PCM POWER RELAY
PURGE FLOW SENSOR

Engine Controls (With Sequential Fuel Injection) (Part 2 Of 7):

EGR VACUUM REGULATOR SOLENOID
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
IDLE AIR CONTROL VALVE
MASS AIR FLOW SENSOR
VEHICLE SPEED SENSOR

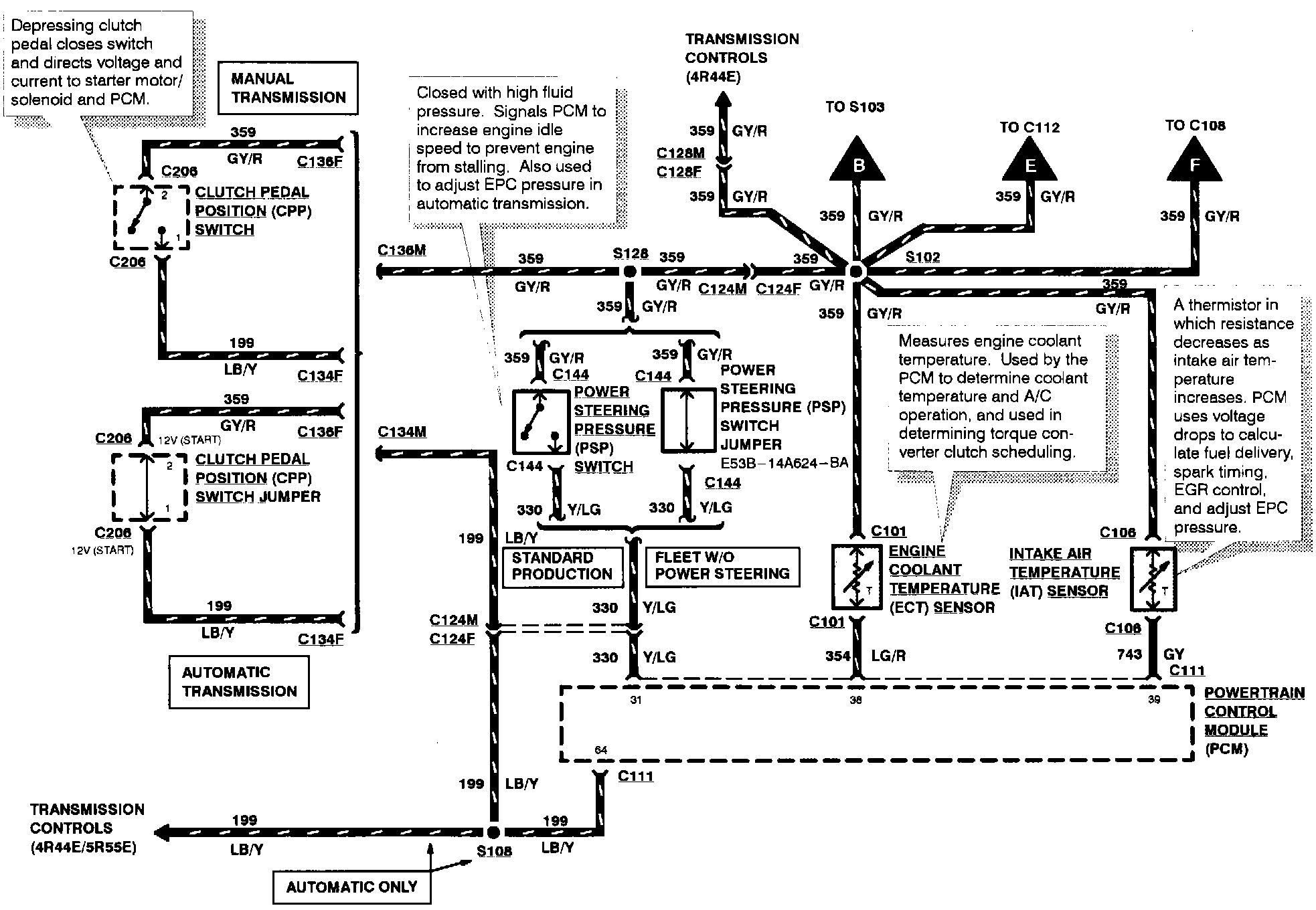

Engine Controls (With Sequential Fuel Injection) (Part 3 Of 7):

ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
POWER STEERING PRESSURE SWITCH
POWER STEERING PRESSURE SWITCH JUMPER

Engine Controls (With Sequential Fuel Injection) (Part 4 Of 7):

CAMSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
OCTANE ADJUST (SHORTING BAR)
THROTTLE POSITION SENSOR

Engine Controls (With Sequential Fuel Injection) (Part 5 Of 7):

HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2

Engine Controls (With Sequential Fuel Injection) (Part 6 Of 7):

TRANSMISSION CONTROL INDICATOR LAMP
TRANSMISSION CONTROL SWITCH

Engine Controls (With Sequential Fuel Injection) (Part 7 Of 7):

BRAKE ON/OFF SWITCH
