Ranger 2WD L4-140 2.3L VIN A EFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Block Diagrams
>>
With Passenger Air Bag
With Passenger Air Bag

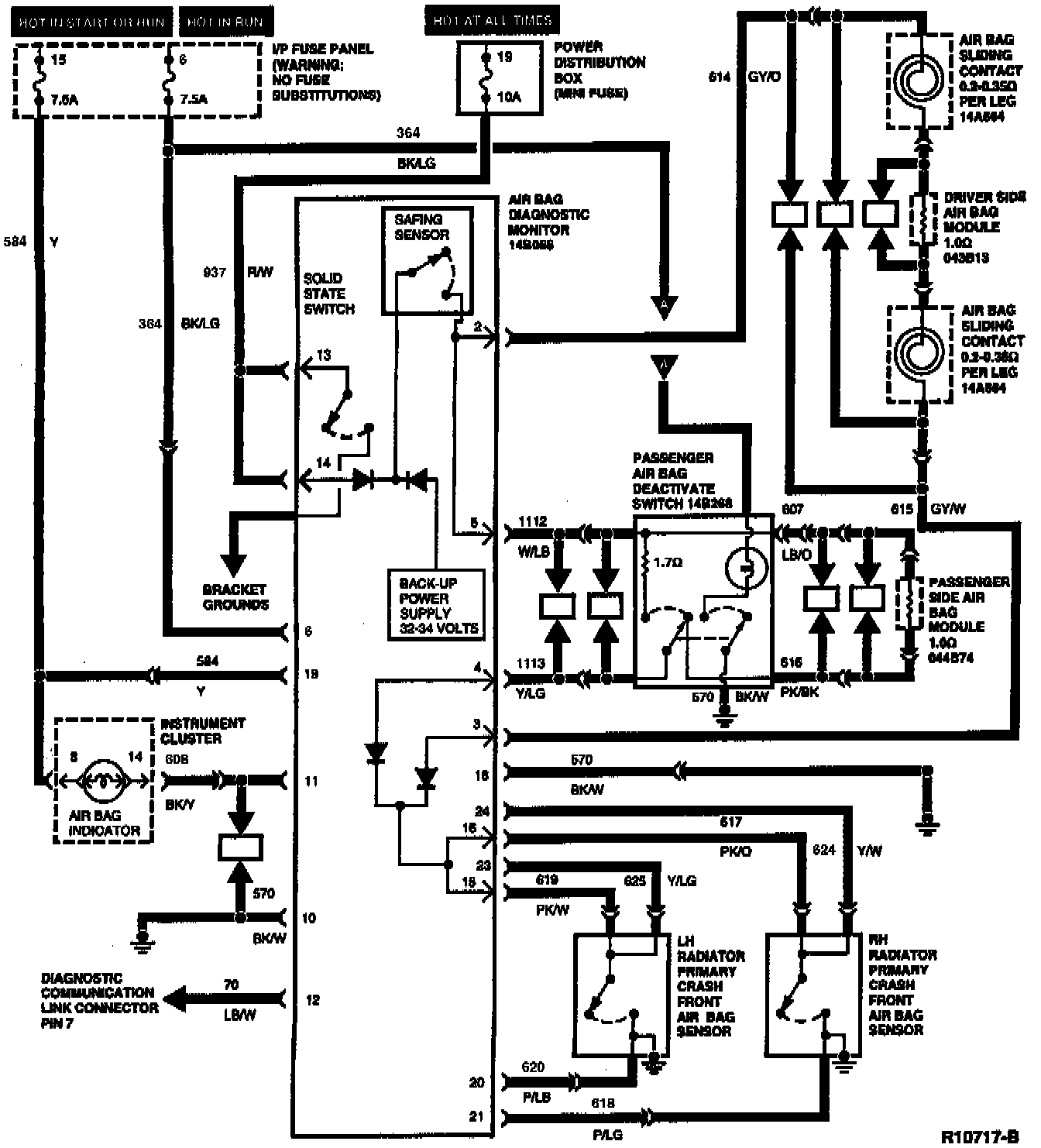

Air Bag Block Diagram (With Passenger Air Bag):
