CTM Controlled Subsytems
Windshield Wiper/Washer ControlMIST
When the wash button is tapped for less than 0.3 seconds with the multifunction switch in the OFF position. the wiper motor will perform a single wipe without a wash. If the wash button is held longer (up to 10 seconds), the washer pump runs followed by three extra low-speed wipes after the button is released.
INTERVAL
For standard interval, the time between low-speed wipes will range from 1.5-20 seconds.
HI
This is the fastest wiper speed with no dwell. It is selected when the multi-function switch is in the HI speed position. If the wash button is pressed for 0.3-10 seconds, the washer pump will energize until the wash button is released.
LO
This is the slowest wiper speed with no dwell. It is selected when the multi-function switch is in the LO speed position. If the wash button is pressed for 0.3-10 seconds, the washer pump will energize until the wash button is released.
WASH
If the wash button is pressed for 0.3-10 seconds, the washer pump will energize until the wash button is released.
Chime Warning

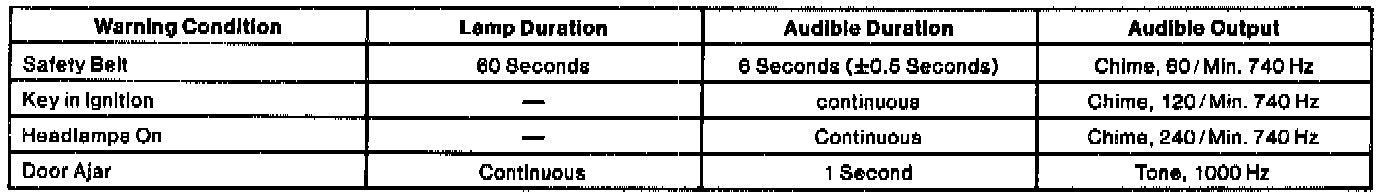

The Central Timer Module (CTM) will not generate more than one audible warning at any given time. When more than one condition requiring a CTM-generated audible warning is present, the CTM will stack the warning conditions and sound them in order of decreasing priority according to the table provided. However, the CTM will not delay the illumination of any warning indicator lamp, even in cases where its associated audible warning is being delayed by the sounding of a higher priority audible warning. For any given condition requiring an audible warning, the CTM will sound that warning only after all higher priority warnings have completed sounding, the given condition still exists, and the associated indicator lamp, if any, is still illuminated.
Headlamp On Warning
A chime sounds when the exterior lamps are on (parking, license plate and headlamps and:
- There is no key in the ignition switch.
- The driver's front door is ajar (or open).
- Ignition switch is in OFF position.
Door Ajar Warning
When at least one door is ajar and the key is in the RUN position, the door ajar cluster lamp is activated and remains on until all doors are closed. A warning tone will sound once any time the key is in the ignition switch and any door is open.
Driver Seat Belt Warning
During the first 60.0 seconds after the ignition switch state is changed to RUN and remains in RUN or START, the CTM will activate the safety belt warning indicator lamp any time during this period that the driver safety belt is not buckled.
Key In Ignition
Any time the key is in the ignition switch and the driver door is open, the module sounds a chime (120 chimes per minute) until either the key is removed from the ignition or the driver's door is closed.
Battery Saver
The battery saver feature removes extended interior lamp power drains to the battery. The CTM keeps power to these loads for 45 minutes after the ignition switch is turned off.
NOTE: The exterior lamps are not part of the battery saver protection, and will remain on even if the GEM turns the interior lamps off.
The CTM will keep power available for all interior lights, key ring lights, cargo lamp, and hood lamp circuits for 40 minutes after the ignition switch is turned off. The battery saver timer is reset by lifting a door handle, activating a door ajar switch, changing the ignition to START, or moving the key to the RUN or ACCY position. No lamp or chime indication is provided.
A WAKE-UP command is sent when:
- Driver door handle switch is activated.
- Any door becomes ajar or is closed.
- The key is inserted or removed.
- The ignition switch is turned from OFF to RUN. ^ The ignition switch is turned from OFF to ACCY. Courtesy Lamps
The CTM illuminates the interior courtesy lamps when any door is set ajar or is opened. All interior courtesy lamps are turned off when any of the following occurs:
- Twenty-five seconds have elapsed after all the doors are closed.
- The ignition switch is turned to RUN.
- Vehicle speed is over 8km/h (5mph) (once the interior courtesy lamps are turned OFF, a new ajar signal will be honored only if vehicle is speed is below 16km/h(mph).
- A power door lock command is received before the five seconds have elapsed.
Illuminated Entry
The interior courtesy lamps will be turned on if the driver door handle is lifted or if any door is ajar. If the lamps are turned on by lifting the driver door handle or by illuminated entry request from the RAP module, the lamps stay on for 25 seconds.
The interior courtesy lamps are turned off when the following conditions are met.
- 25 seconds have elapsed since the illuminated entry feature was activated and the interior lamp control is not activated.
- The GEM receives a request from the RAP module and the courtesy lamp is not activated.
- The ignition switch is in the RUN or START position and the interior lamp control is not activated.
