Electrical Schematics - GEM Related Subsystems
-
Generic Electronic Module
(GEM) Power and Ground System
-
Warning Lamps and Chimes
-
Battery Saver, Illuminated Entry and Interior Lamps
-
Battery Saver and Interior Illumination
-

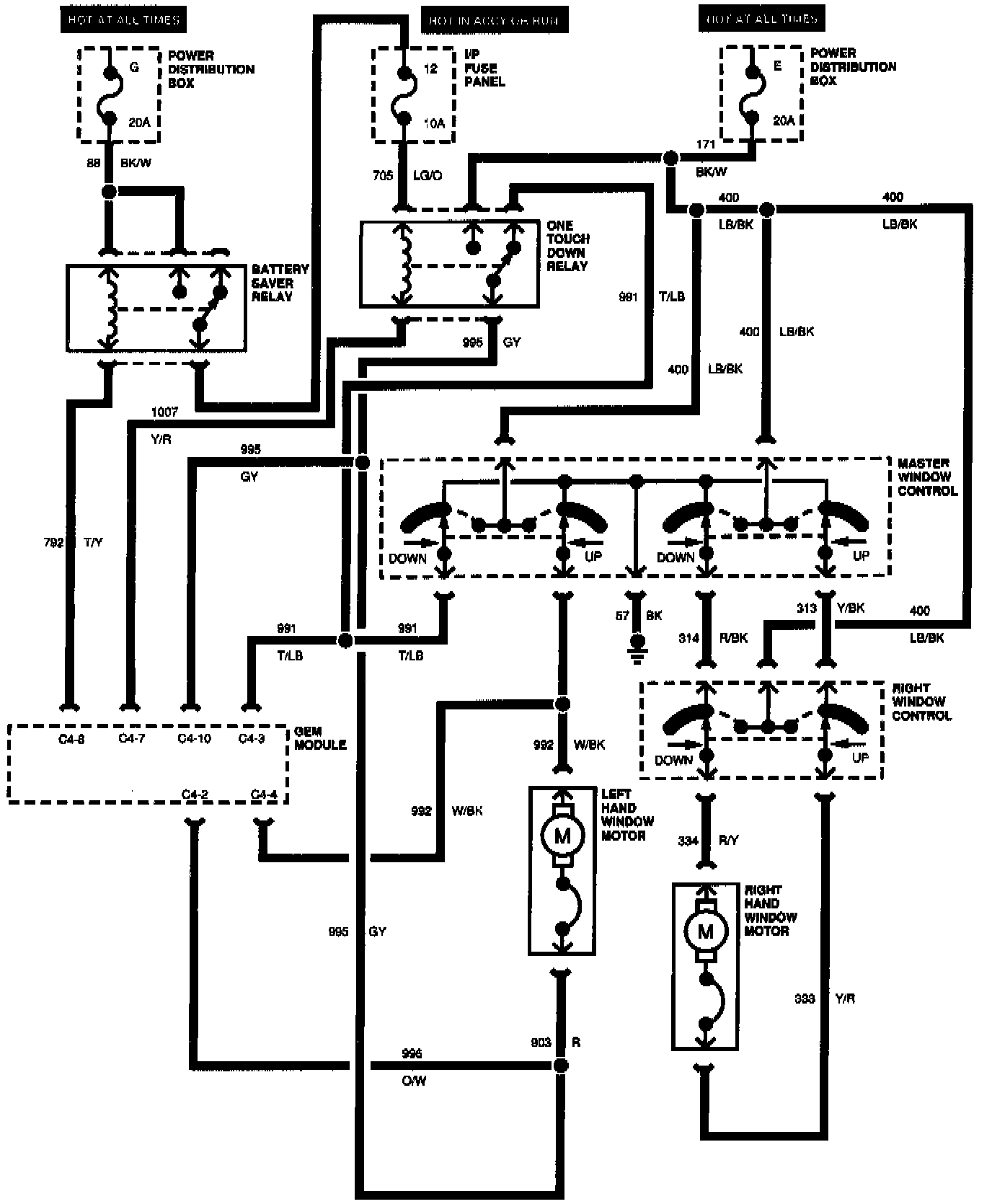

One-Touch Power Windows
-

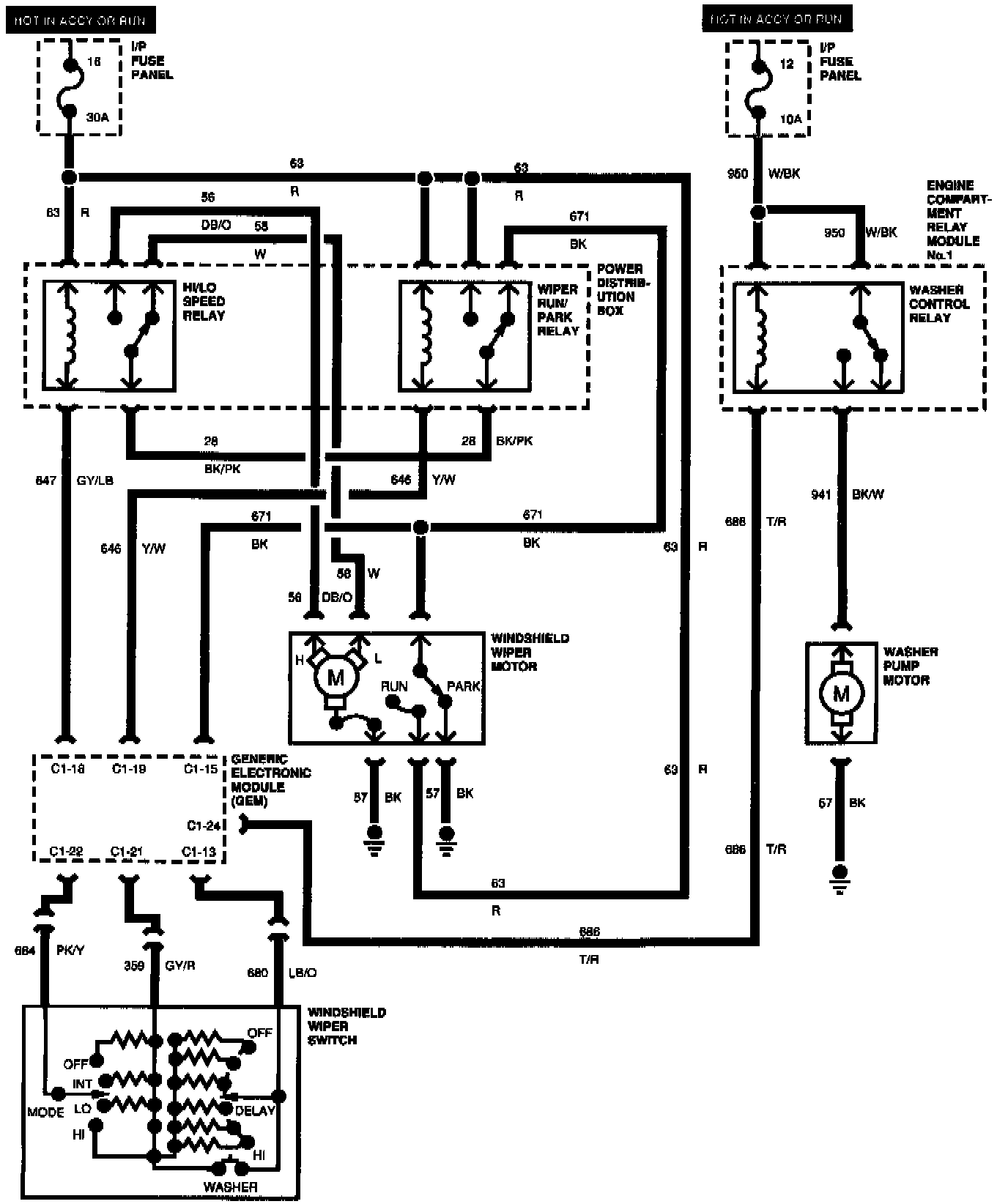

Front Wiper and Washer System
-
Power Locks With Keyless Entry
-

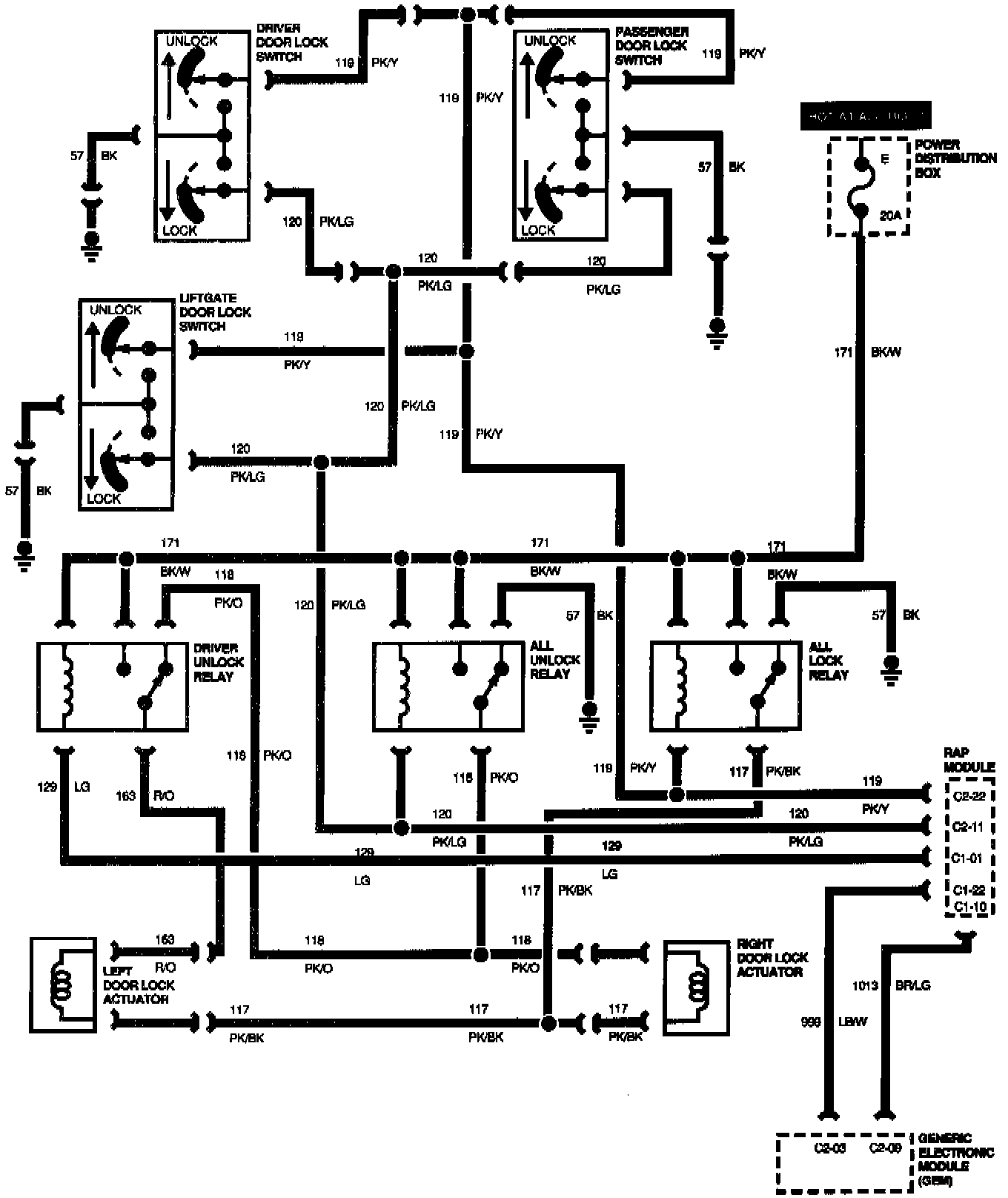

Power Locks Without Keyless Entry
