Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1997
>>
Ranger 2WD V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
A/C Control Connector
A/C Control Connector

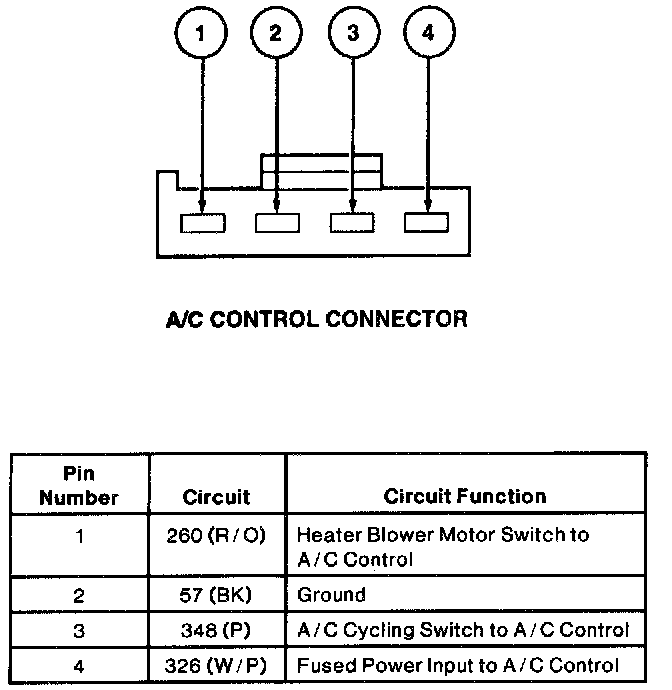

A/C Control Connector:
