Fuse Block: Application and ID

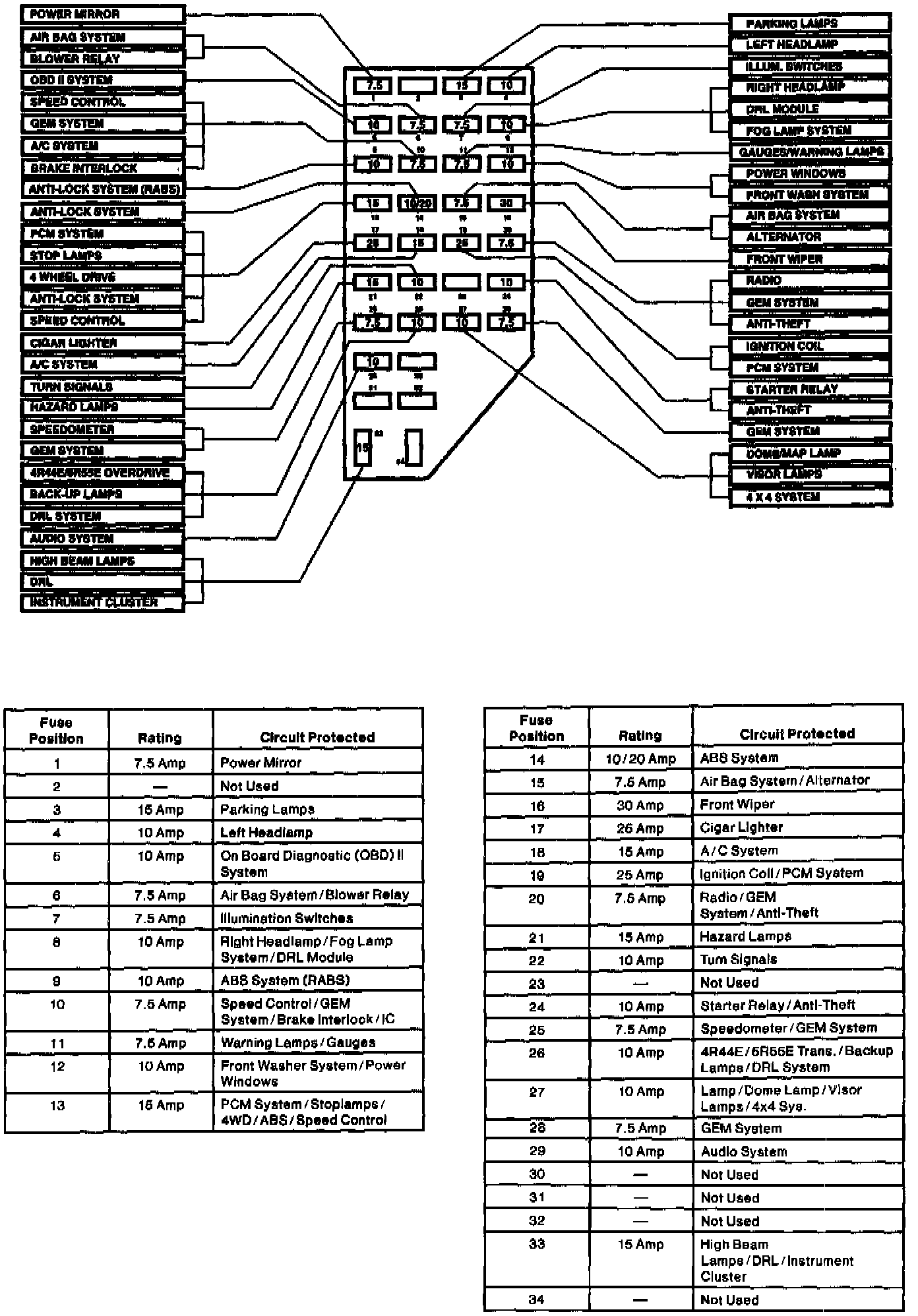

Fuse Panel:

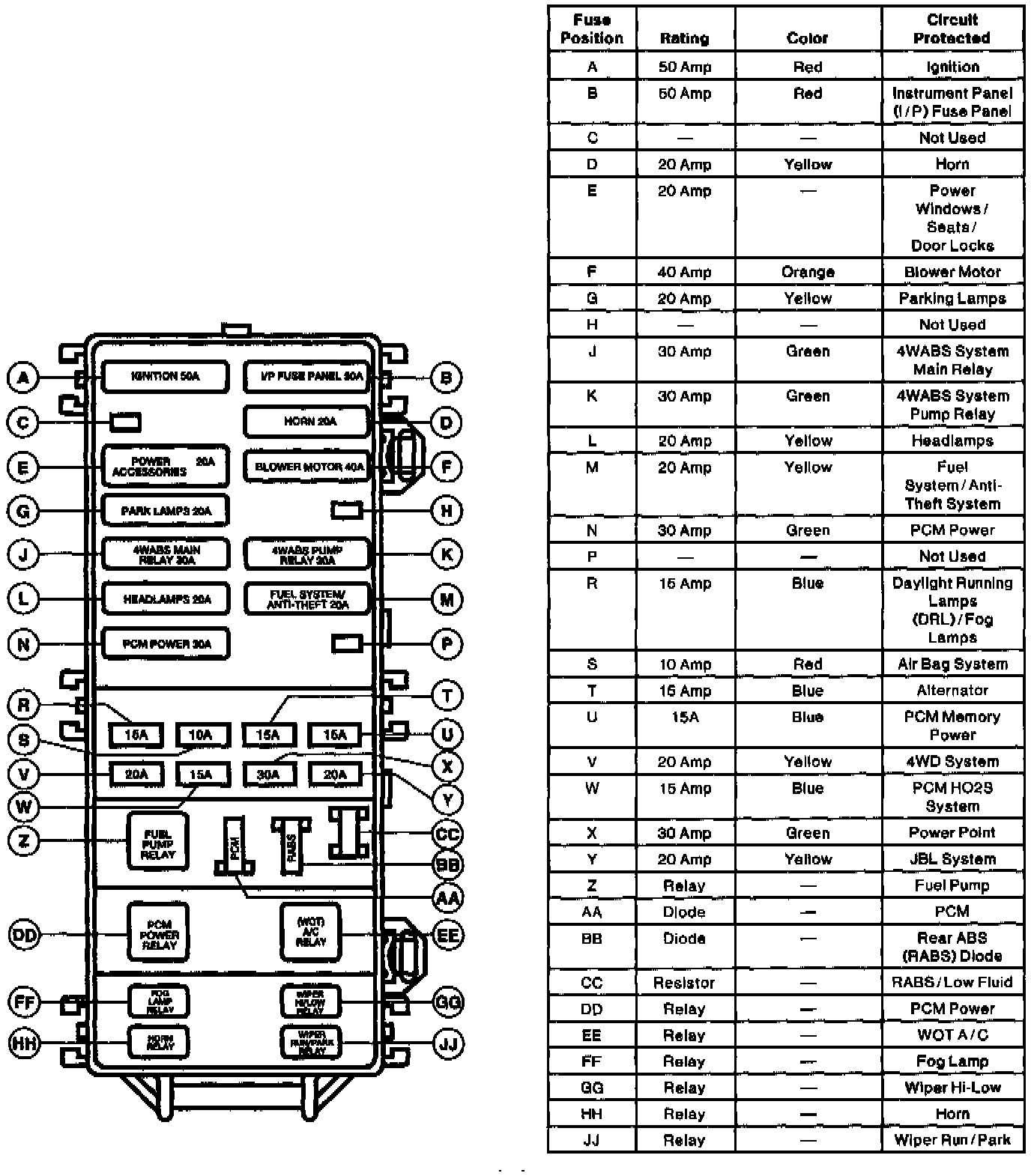

Power Distribution Box:

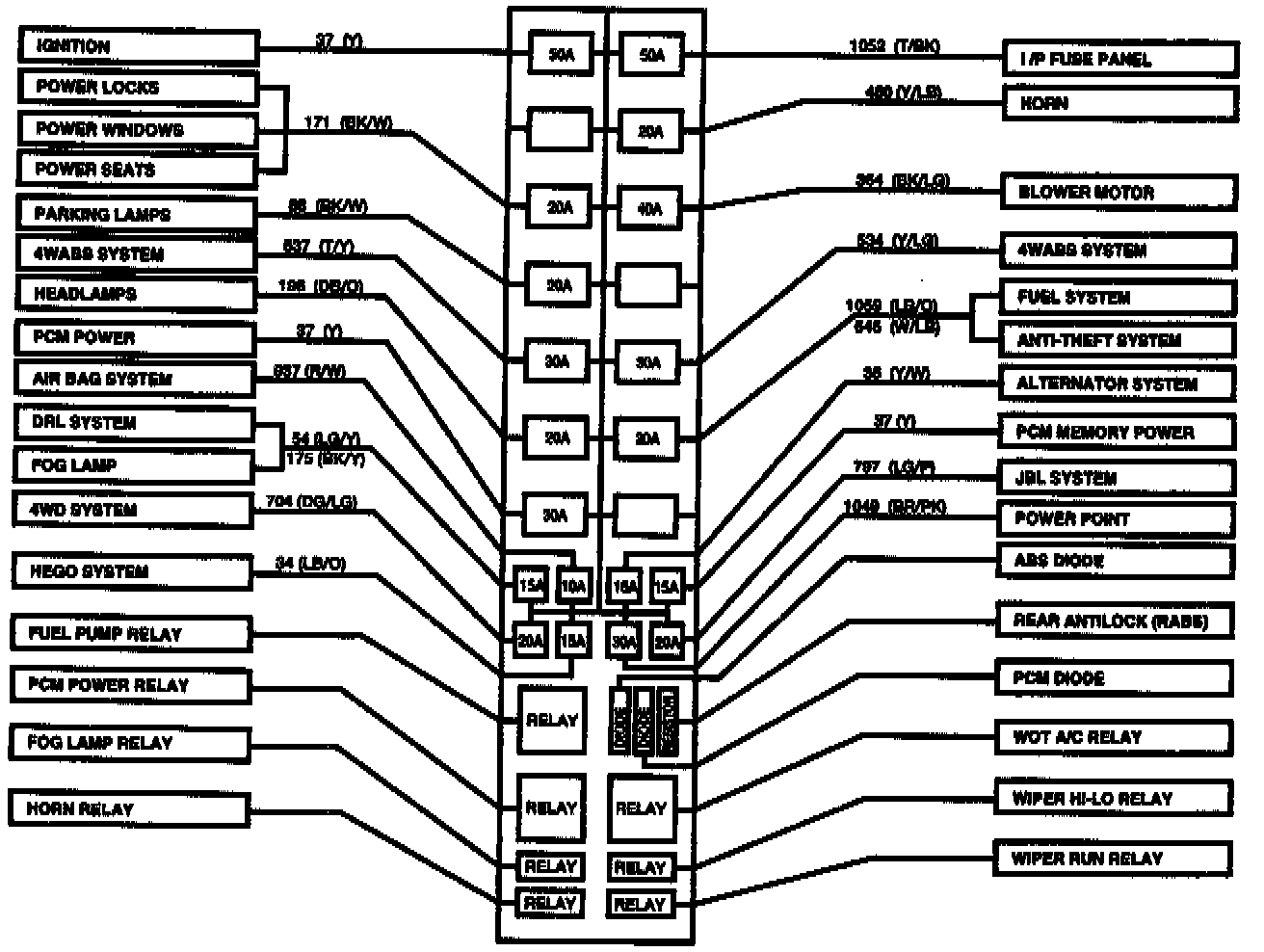

Power Distribution Box Configuration:

WARNING: ALWAYS REPLACE A BLOWN FUSE OR FUSE LINK WITH THE SAME RATING AS SPECIFIED. NEVER REPLACE WITH A HIGHER AMPERAGE RATING BECAUSE SEVERE WIRING DAMAGE AND POSSIBLE FIRE CAN RESULT.

Indicator Flasher Location
The Ranger uses the same flasher for both turn signal and hazard indicator operation. It is located behind the instrument panel steering column cover on the left side of the steering column.
