A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
6
>>

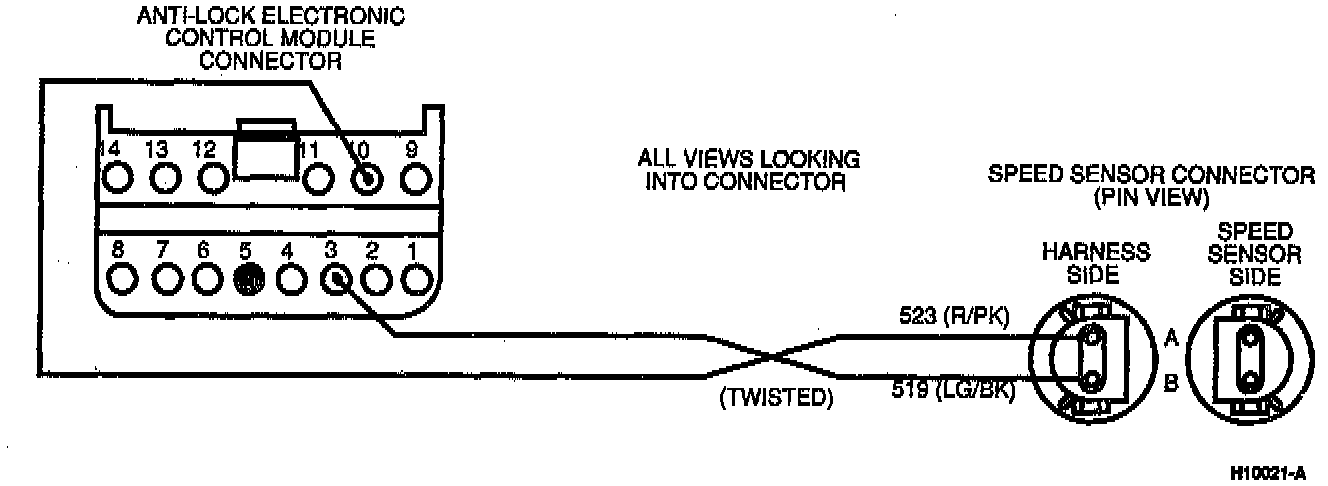

Electrical Diagram
Electrical Diagram
Pinpoint Test Code 6: Erratic Rear Brake Anti-Lock Sensor Circuit:
