Home >> Ford >> 1997 >> Ranger 4WD V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Receiver >> Diagrams >> Receiver Assembly Connector 1

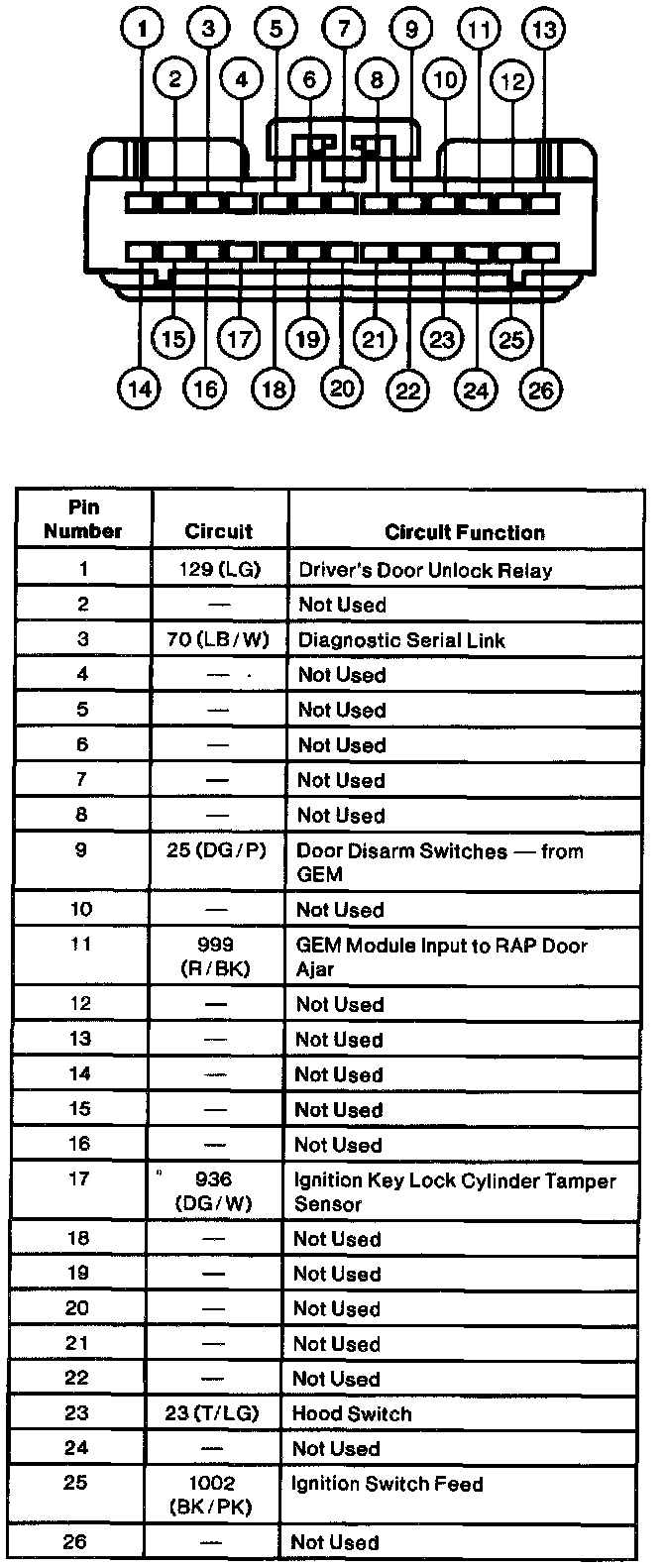

Receiver Assembly Connector 1
