Probing the Receiver Assembly Harness Hardshells

Wiring Connector Probe Points:

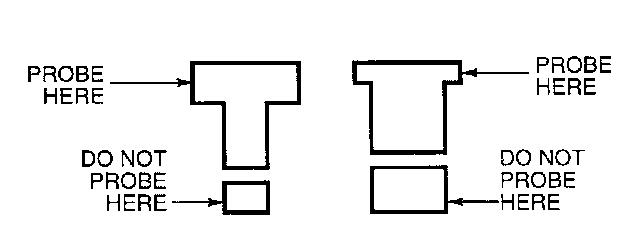

Probe the RAP module harness hardshells through the larger "T" shaped holes. Each "T" shaped hole exposes the same terminal as the smaller slotted hole where the blade enters the hardshell.

NOTE: Forcing large probes, paper clips, etc. into the smaller slots will distort the terminal and create an intermittent connection between the blade and the terminal.
