Diagrams - Remote Control Alarm and Door Locks

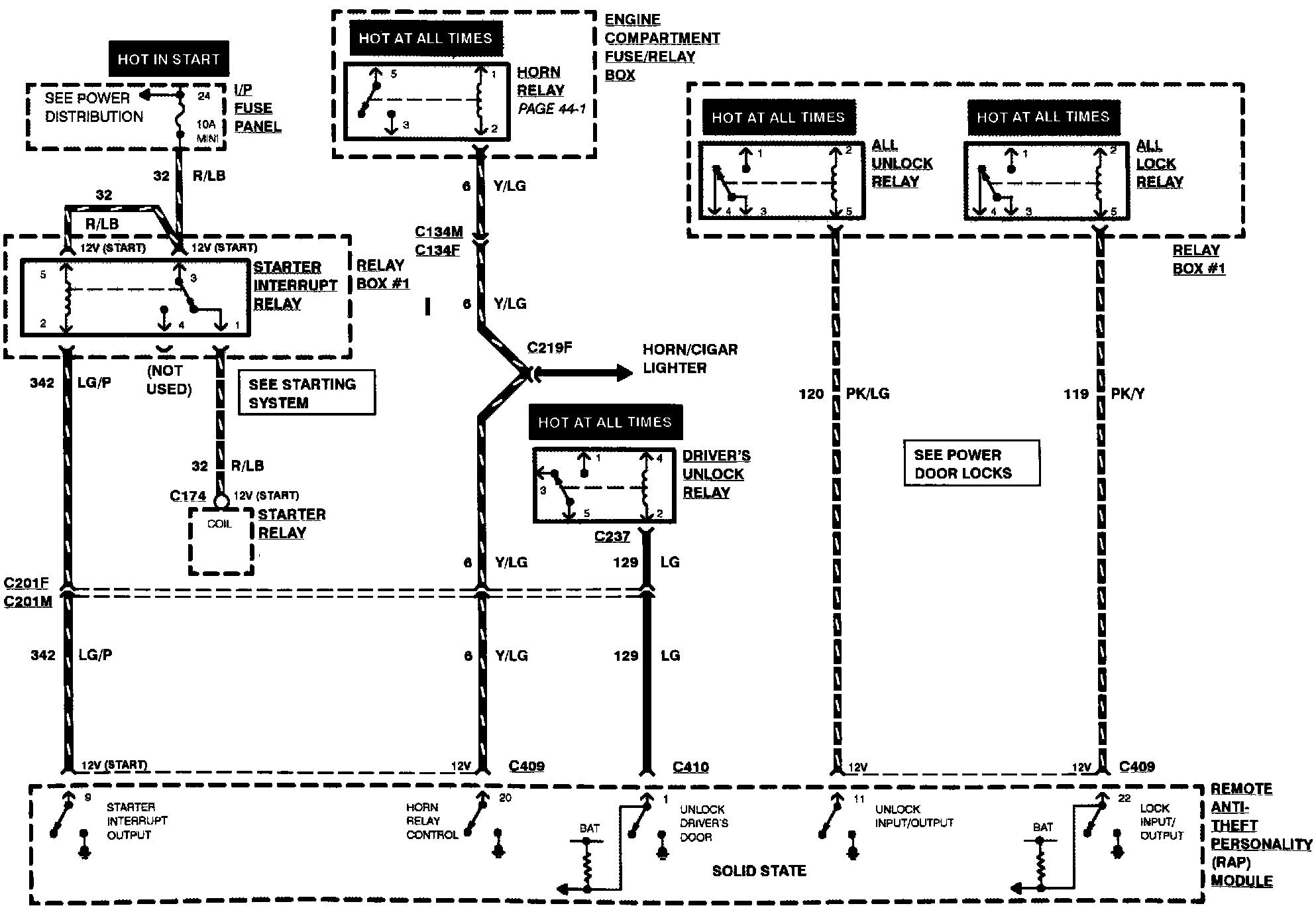

Remote Control Alarm And Lock System (Part 1 Of 4):

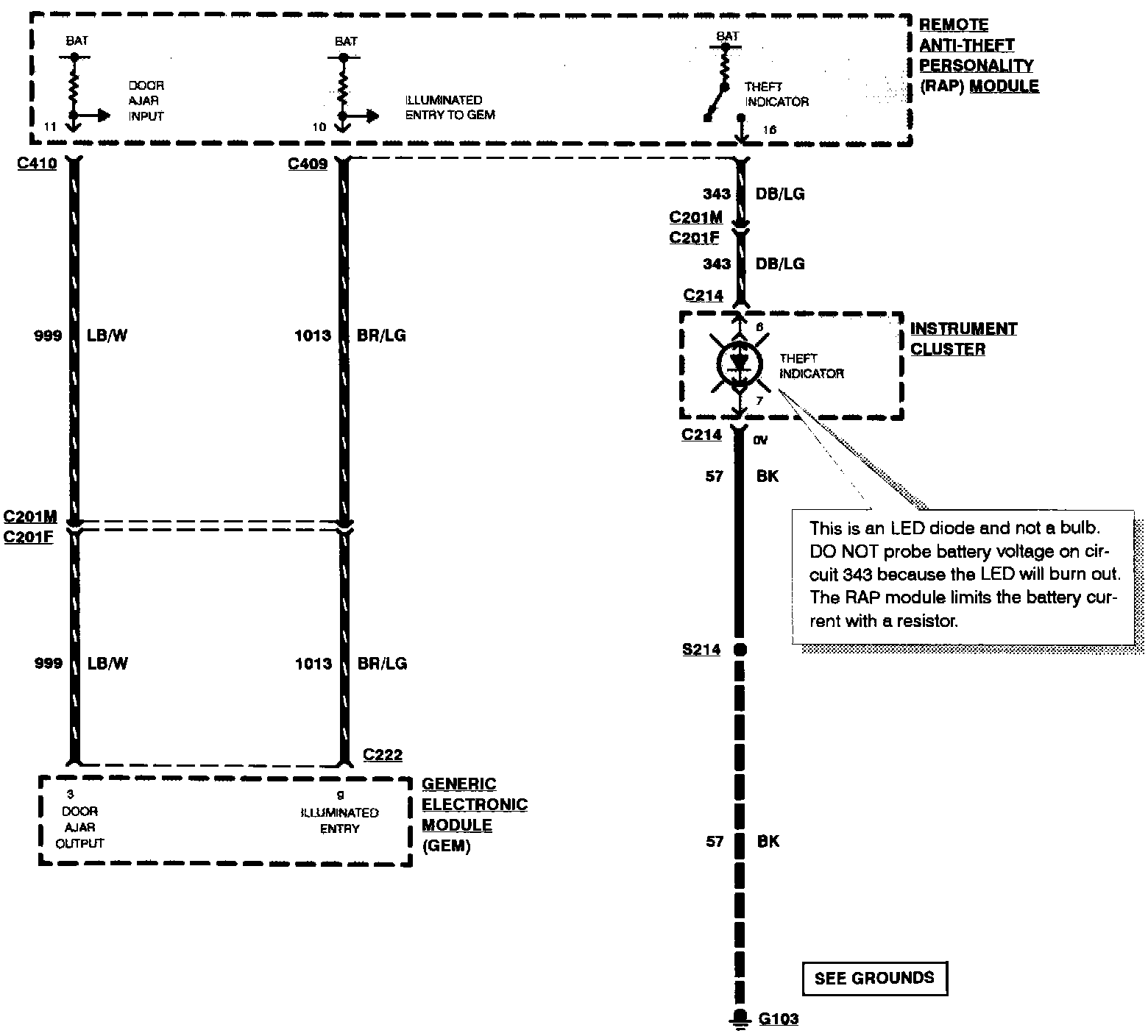

Remote Control Alarm And Lock System (Part 2 Of 4):

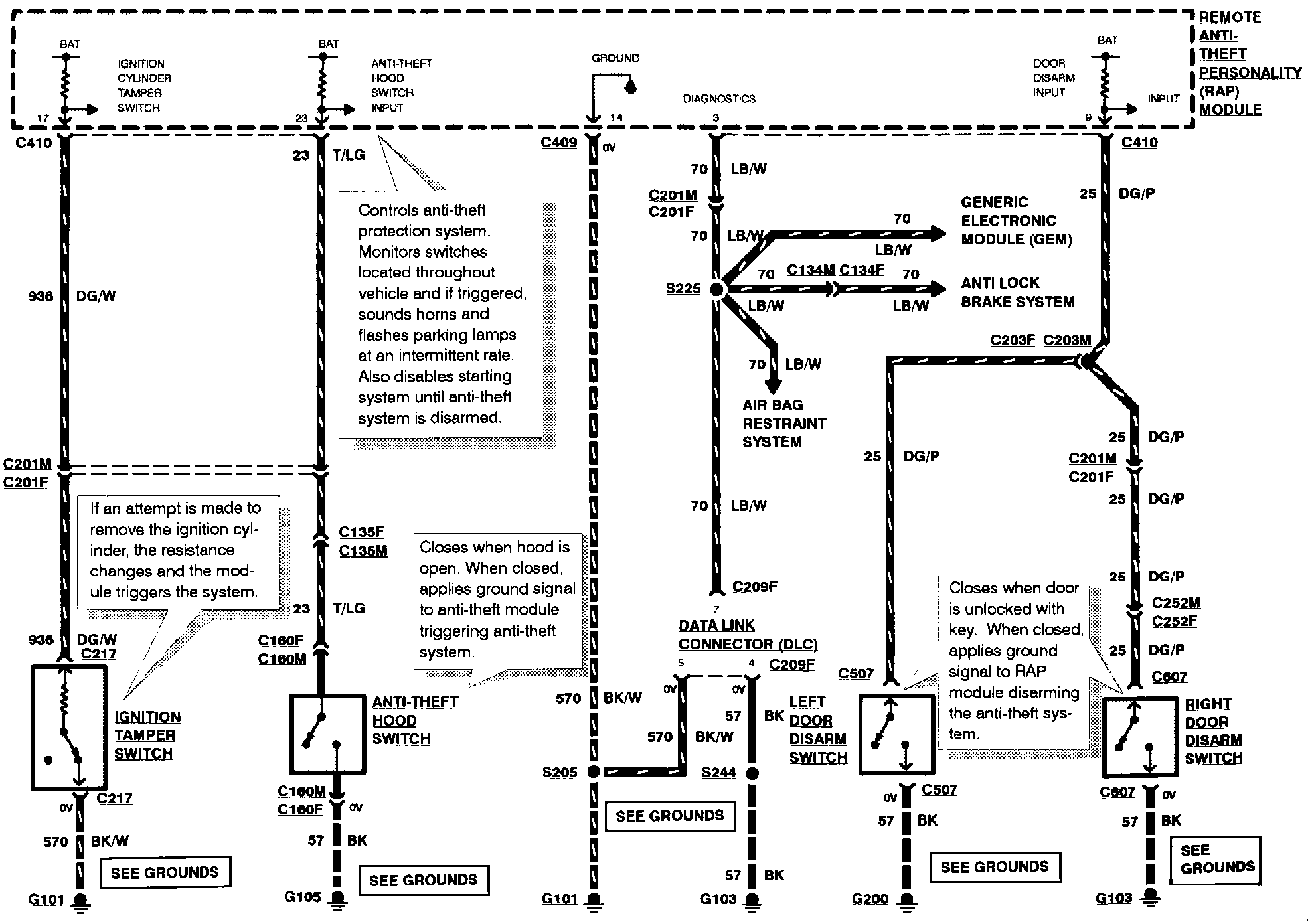

Remote Control Alarm And Lock System (Part 3 Of 4):

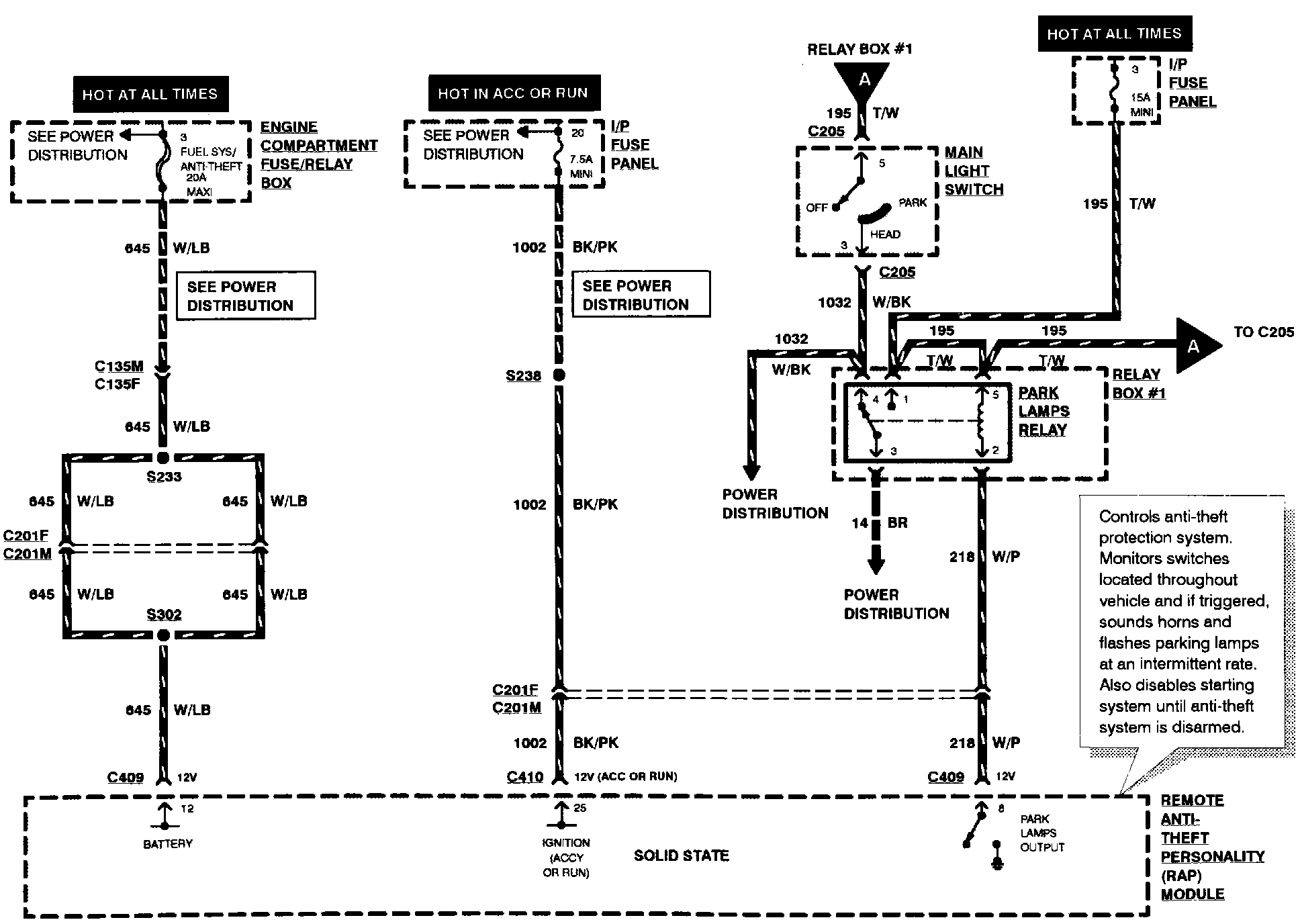

Remote Control Alarm And Lock System (Part 4 Of 4:
