Connector Views Used In Pinpoint Tests

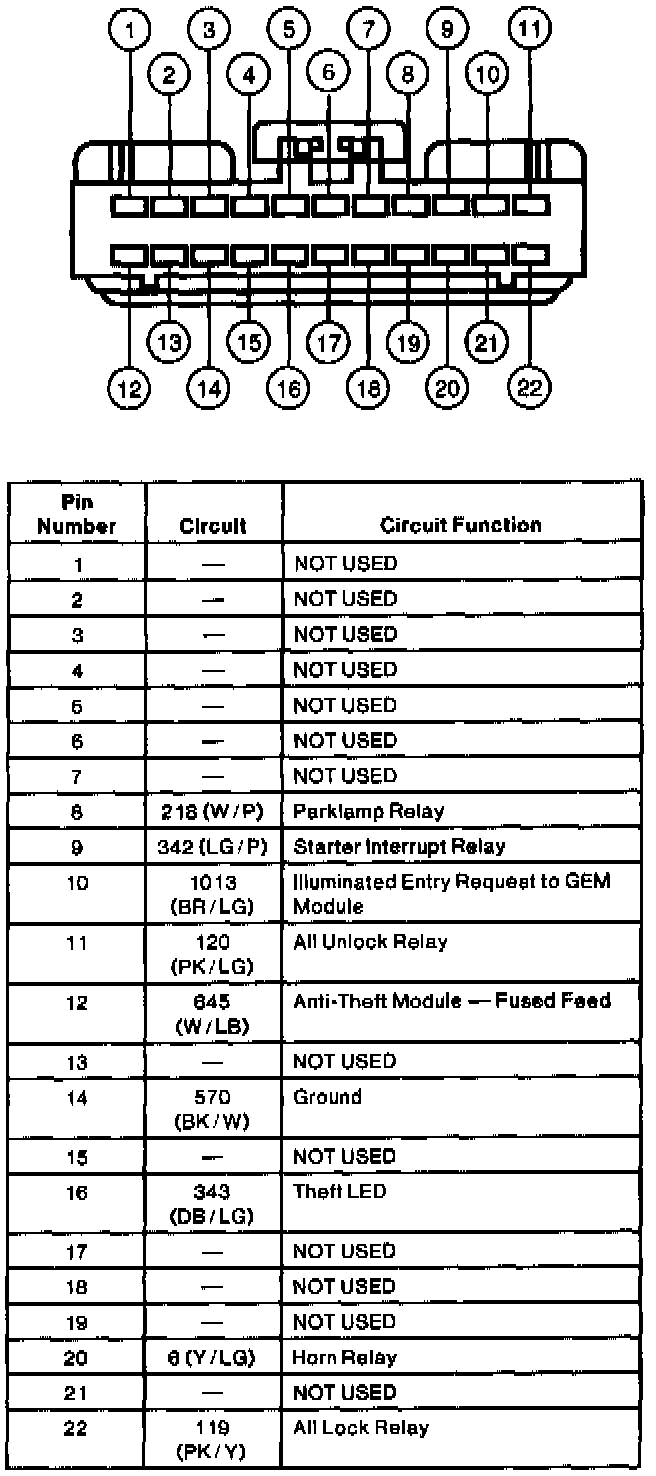

- Receiver Assembly Connector C1

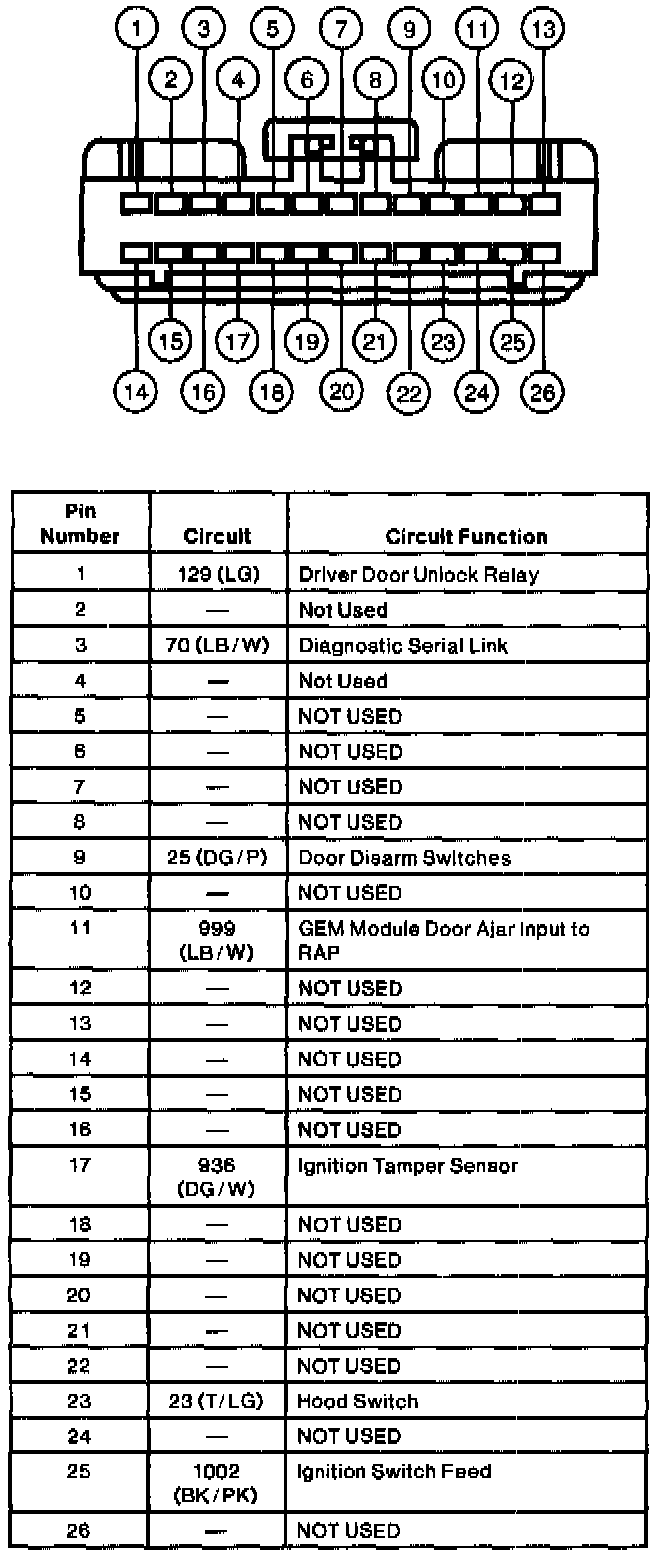

- Receiver Assembly Connector C2
