Out of Round

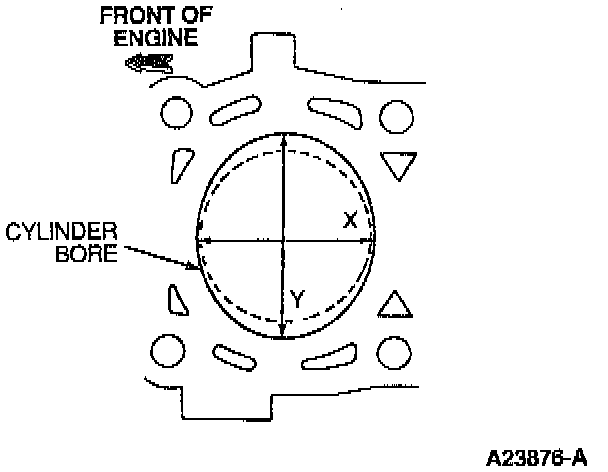

Subtract the reading of direction X (non-thrust) from direction Y (thrust side) at all points A, B. and C. All readings should be less than 0.1 27 mm (0.005 inch). If out-of-round exceeds this specification, cylinder will have to be refinished.
