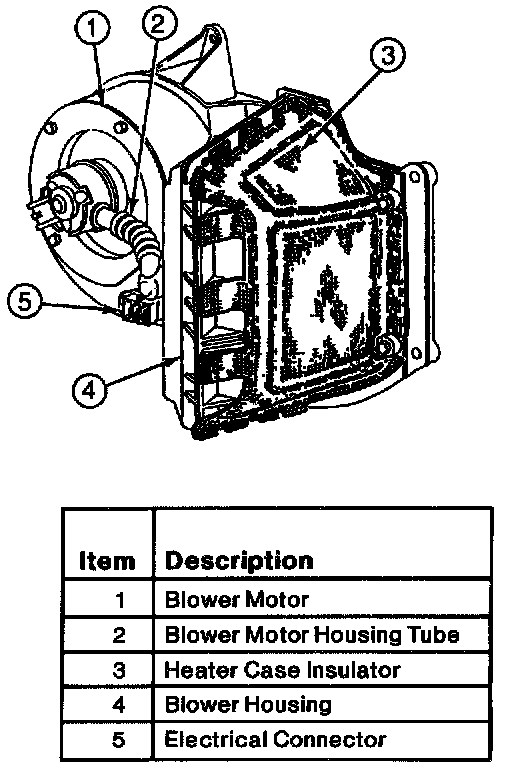

Blower Motor

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the speed control module and windshield/washer bottle.
3. Disconnect the wire harness connector from blower motor by pushing down on the connector tabs and pulling the connector off the blower motor.
4. Disconnect the blower motor housing tube at the blower motor.
5. Remove three screws attaching the blower motor to the A/C blower housing.
6. Holding blower motor housing tube aside, pull the blower motor from the heater plenum chamber case and remove it from the vehicle.
7. Remove the blower wheel hub pushnut and, if applicable, the clamp from the shaft. Then, pull the blower motor wheel from the shaft.

INSTALLATION
1. For installation, follow removal steps in reverse order.
2. Check system for proper operation.
