Ranger 4WD V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests Manual A/C-Heater
>>
A: A/C-Heater System Inop/Intermittent/Improper
A: A/C-Heater System Inop/Intermittent/Improper

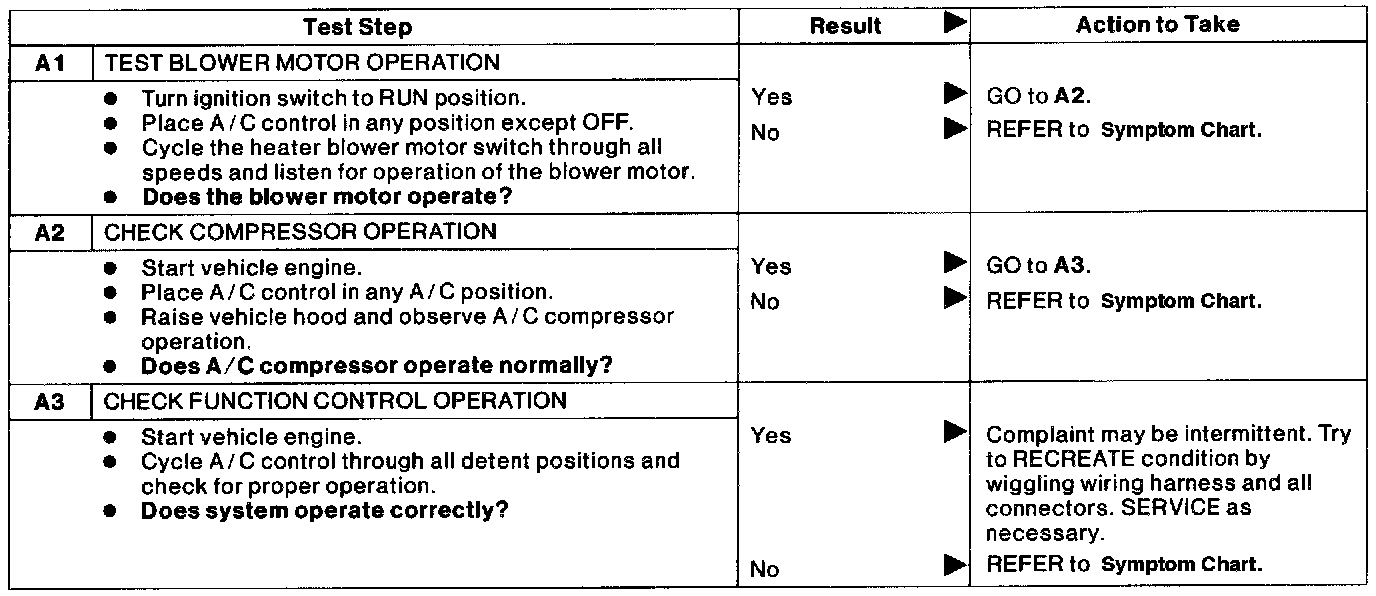

A1 - A3:
