Home >> Ford >> 1997 >> Ranger 4WD V6-3.0L VIN U >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Manual Climate Control >> Connector Views Used With Tests >> Blower Speed Switch Connector

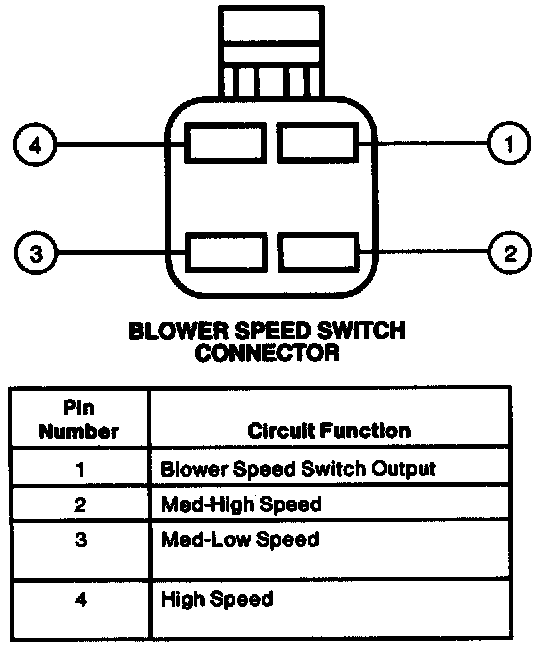

Blower Speed Switch Connector

Blower Speed Switch Connector:
