Engine Compartment Fuse/Relay Box
>>
Fuse POWER LOCK/WINDOW/SEAT
Fuse POWER LOCK/WINDOW/SEAT
Fuse POWER LOCK/WINDOW/SEAT
- protects the following circuits:
^
Door Lock Relays
^
Power Seats
^
Power Lumbar
^
Power Window Relay

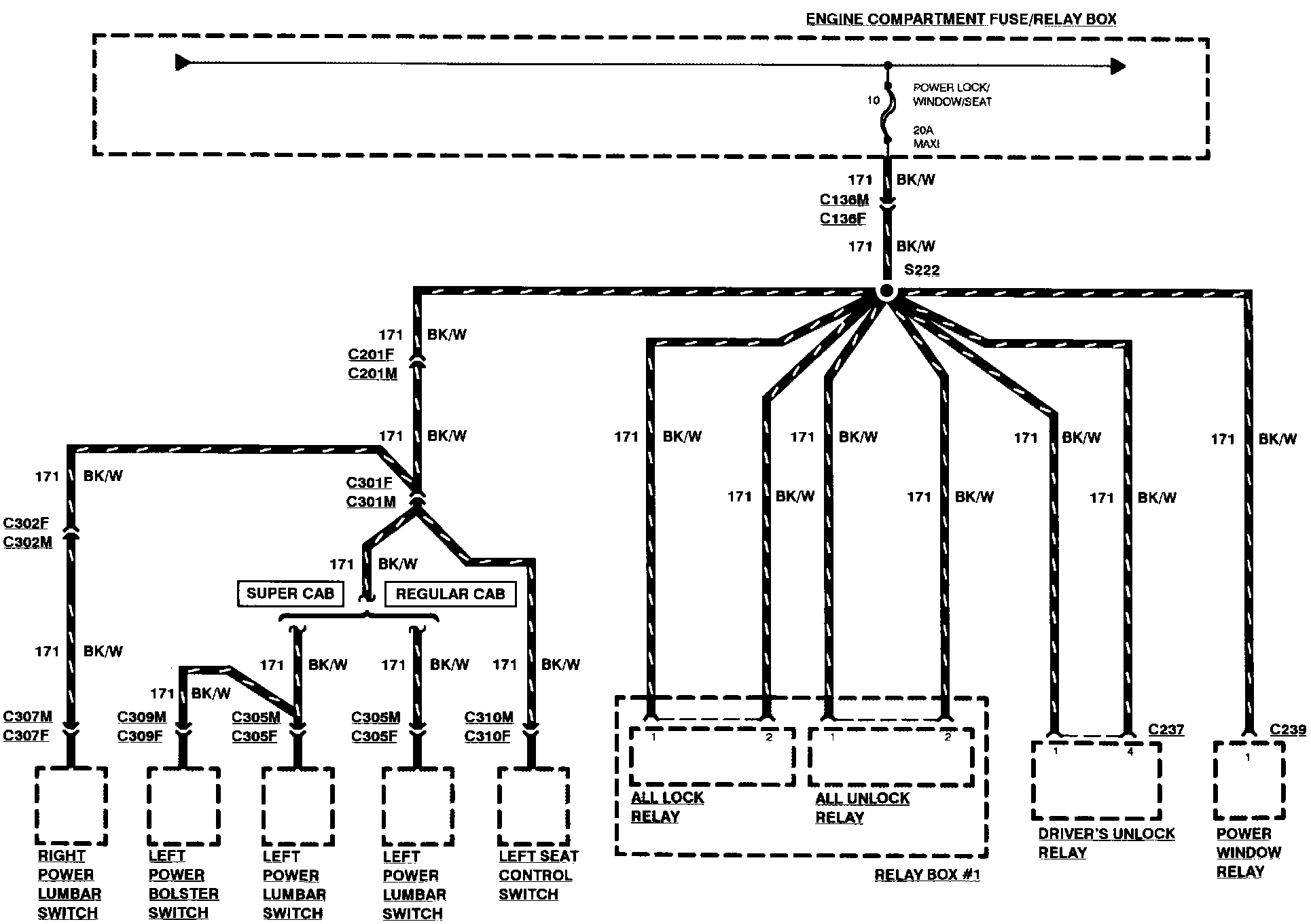

Power Distribution:
