C1007
>>
With 4 Wheel Anti-Lock Brake System
With 4 Wheel Anti-Lock Brake System

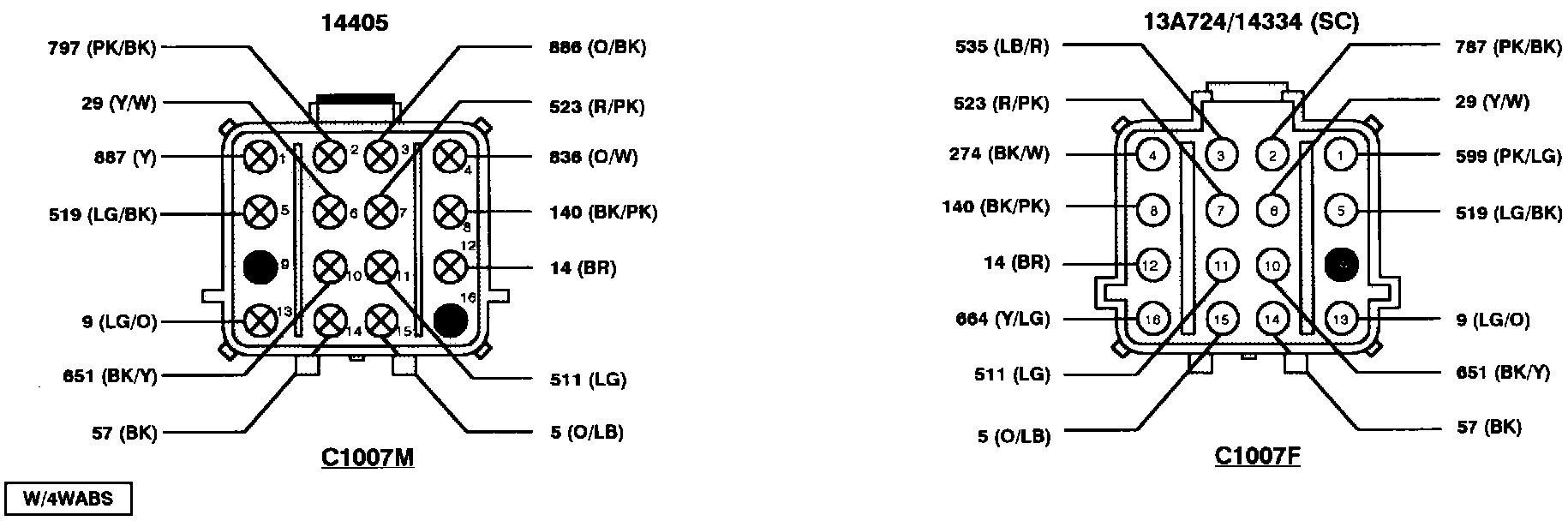

In-Line Connector Faces - C1007:
