Home >> Ford >> 1997 >> Ranger 4WD V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures

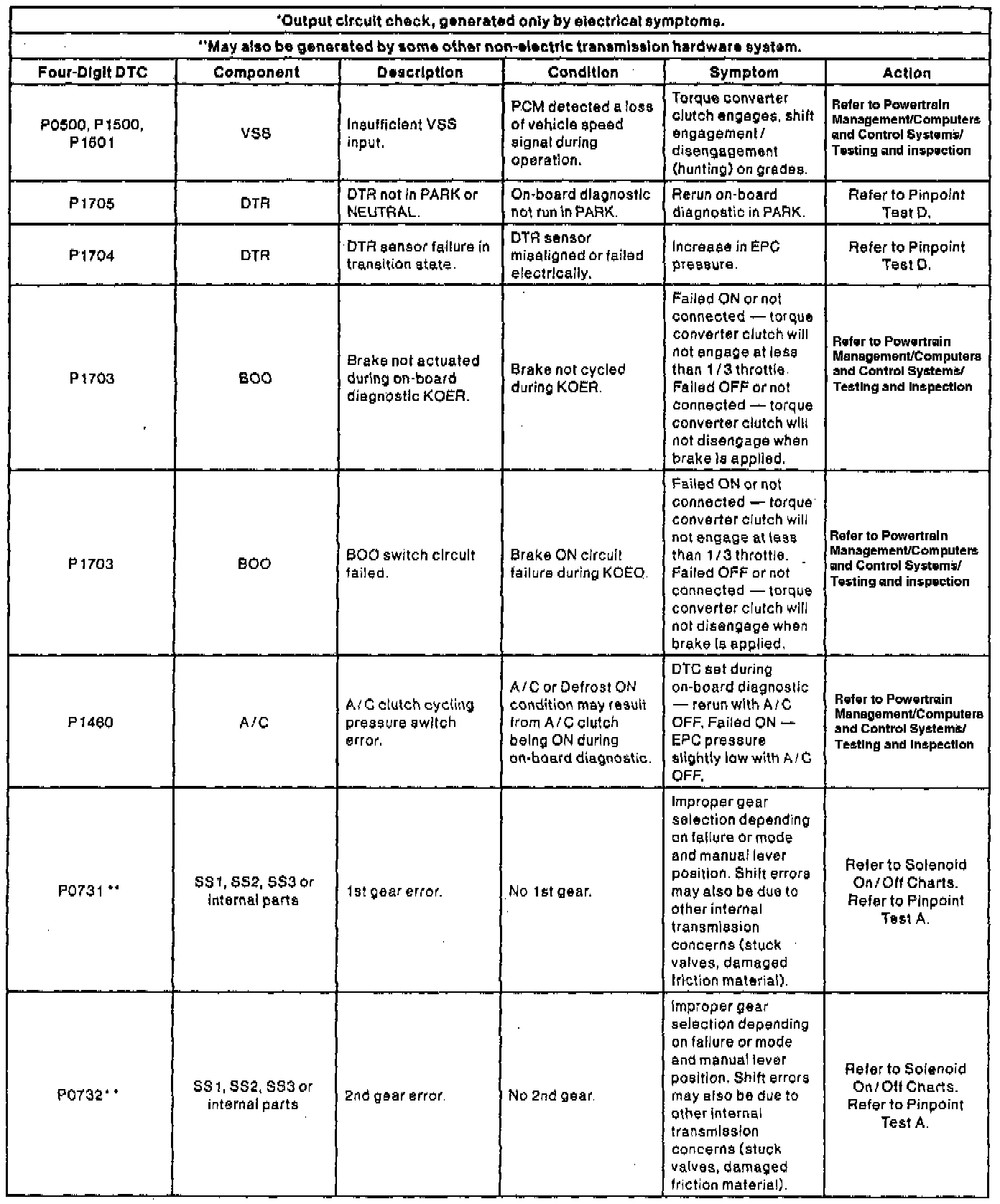

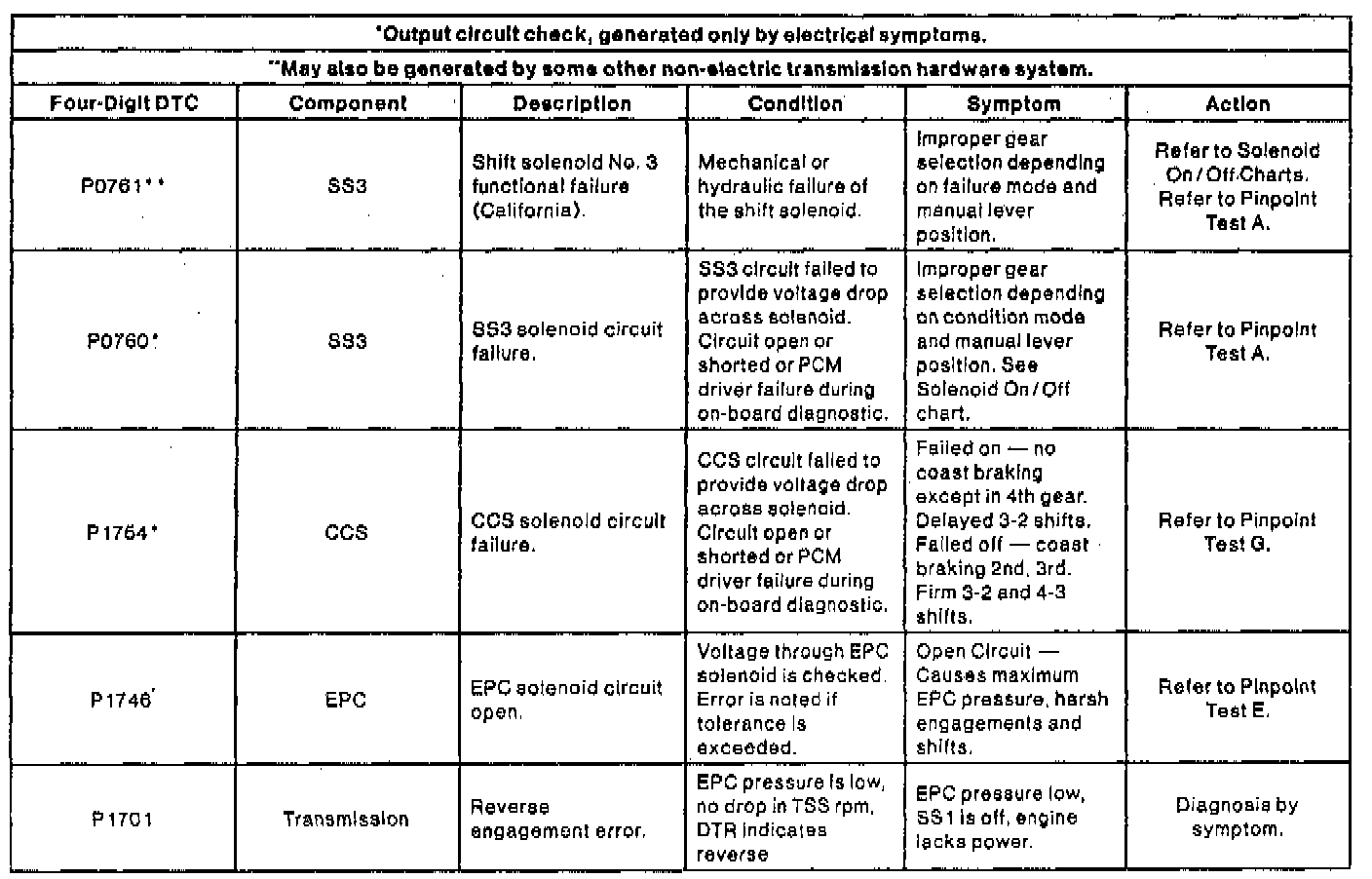

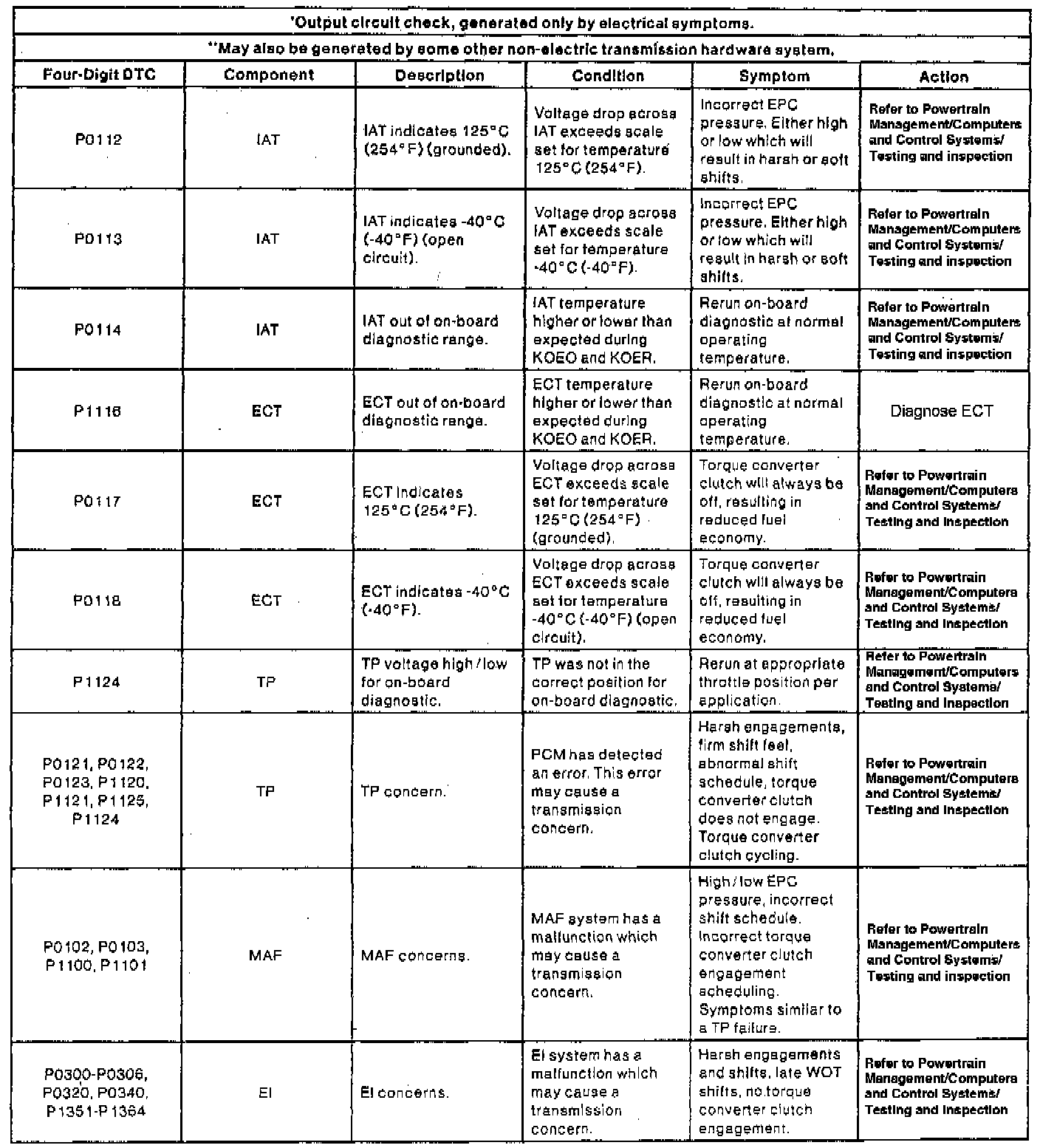

Diagnostic Trouble Code Tests and Associated Procedures

Part 1 Of 5:



Part 2 Of 5:



Part 3 Of 5:



Part 4 Of 5:



Part 5 Of 5:
