EPC Solenoid

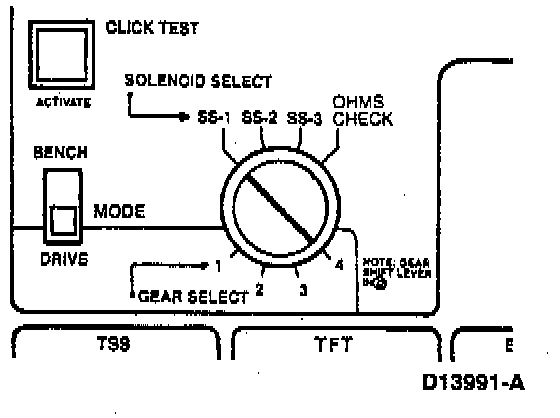

1. Set ohmmeter to 100-200 ohm range.
2. Connect COM lead to the EPC jack.
3. Connect ohmmeter POS lead to the VPWR jack.
4. Record resistance.
5. Refer to the chart for values.

If out of specification, refer to Pinpoint Test E.
SS1: 22-48 ohms
SS2: 22-48 ohms
SS3: 22-48 ohms
CCS: 22-48 ohms
TCC: 8.9-16.0 ohms
EPC: 3.1-5.7 ohms
