Relay Box
>>
Locations
>>
Relay Box #1
Relay Box #1

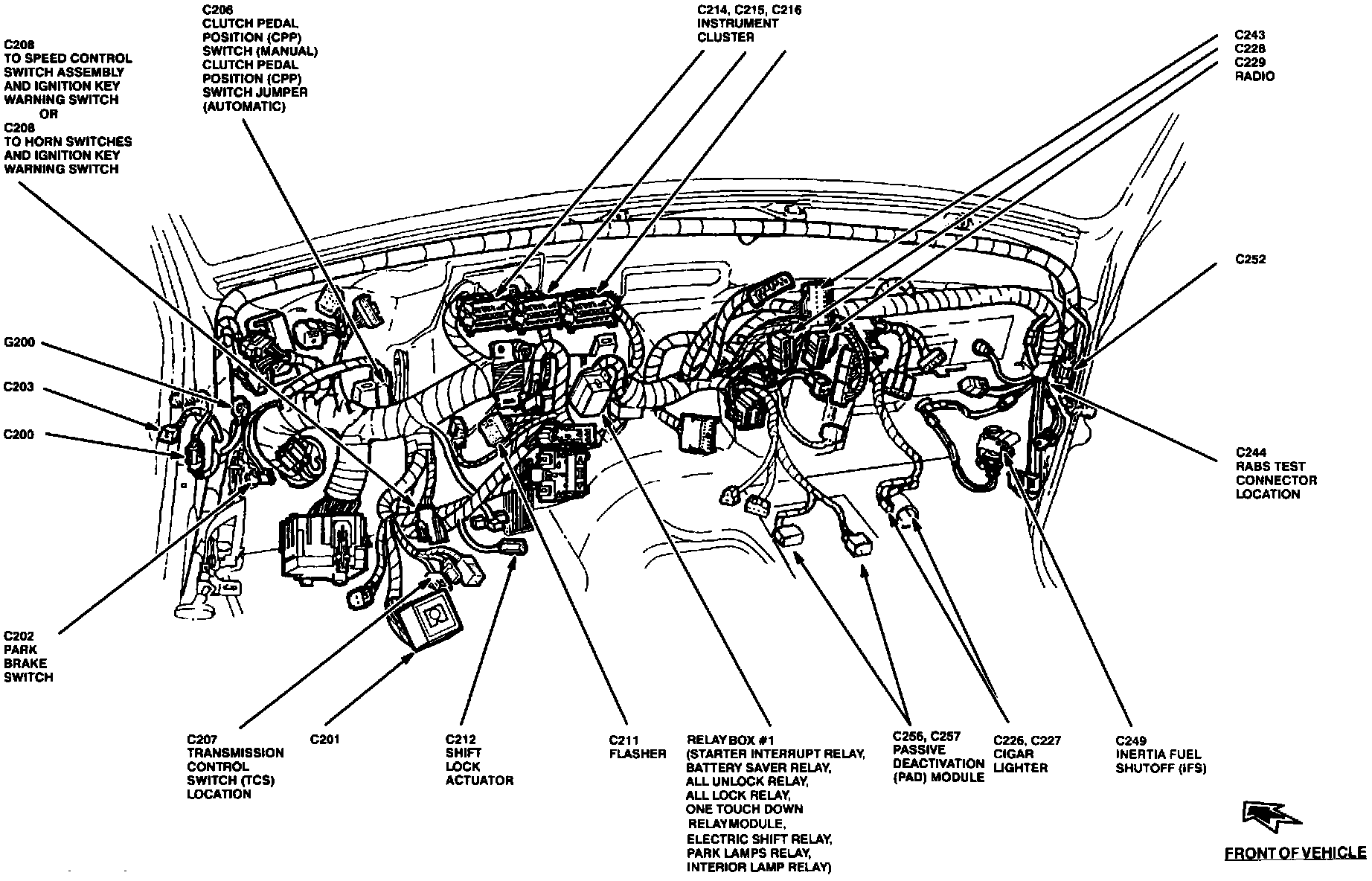

Behind Instrument Panel View:
The Relay Box #1 is located behind the instrument panel, right of steering column.
