Air Bag Control Module: Diagrams

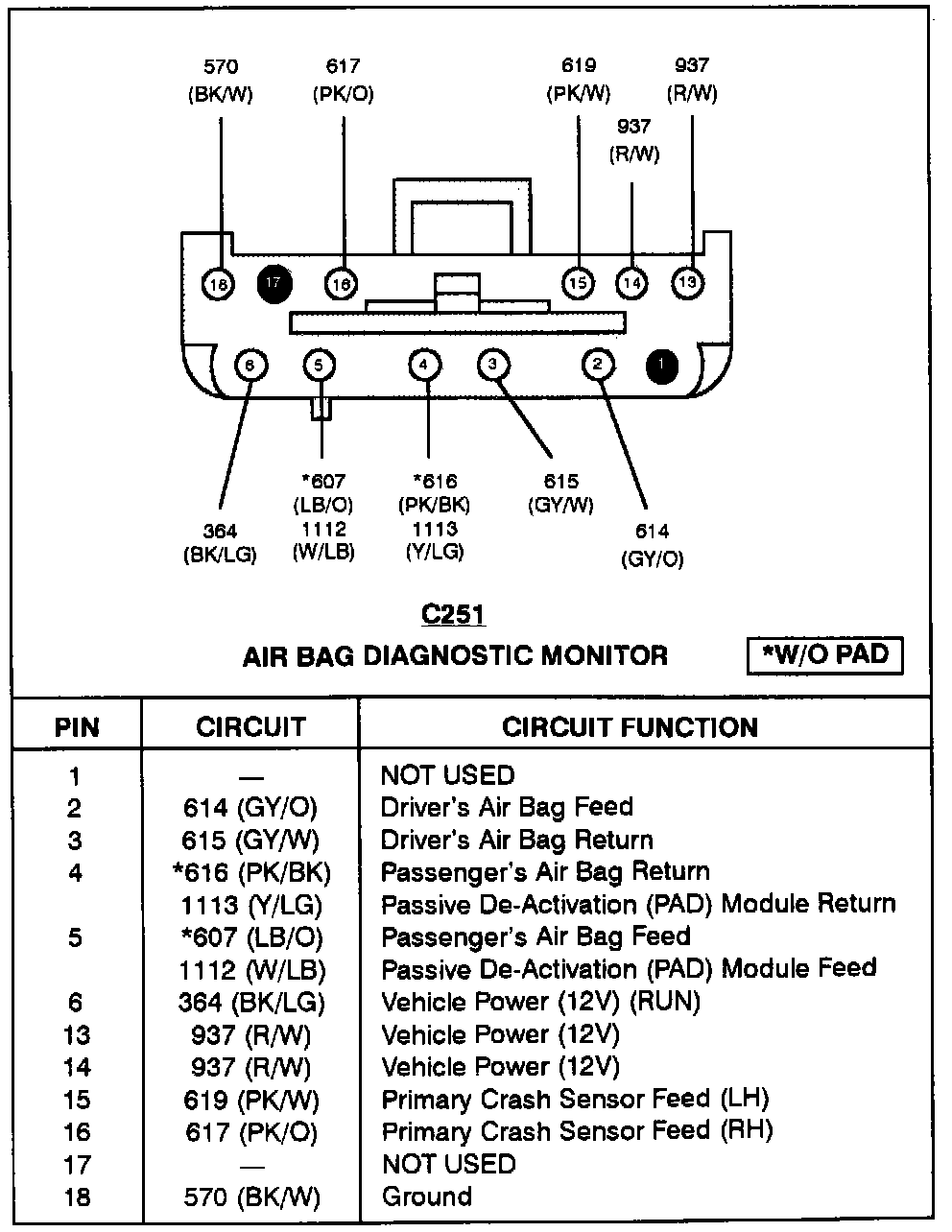

Air Bag Diagnostic Monitor Black Connector (C250):

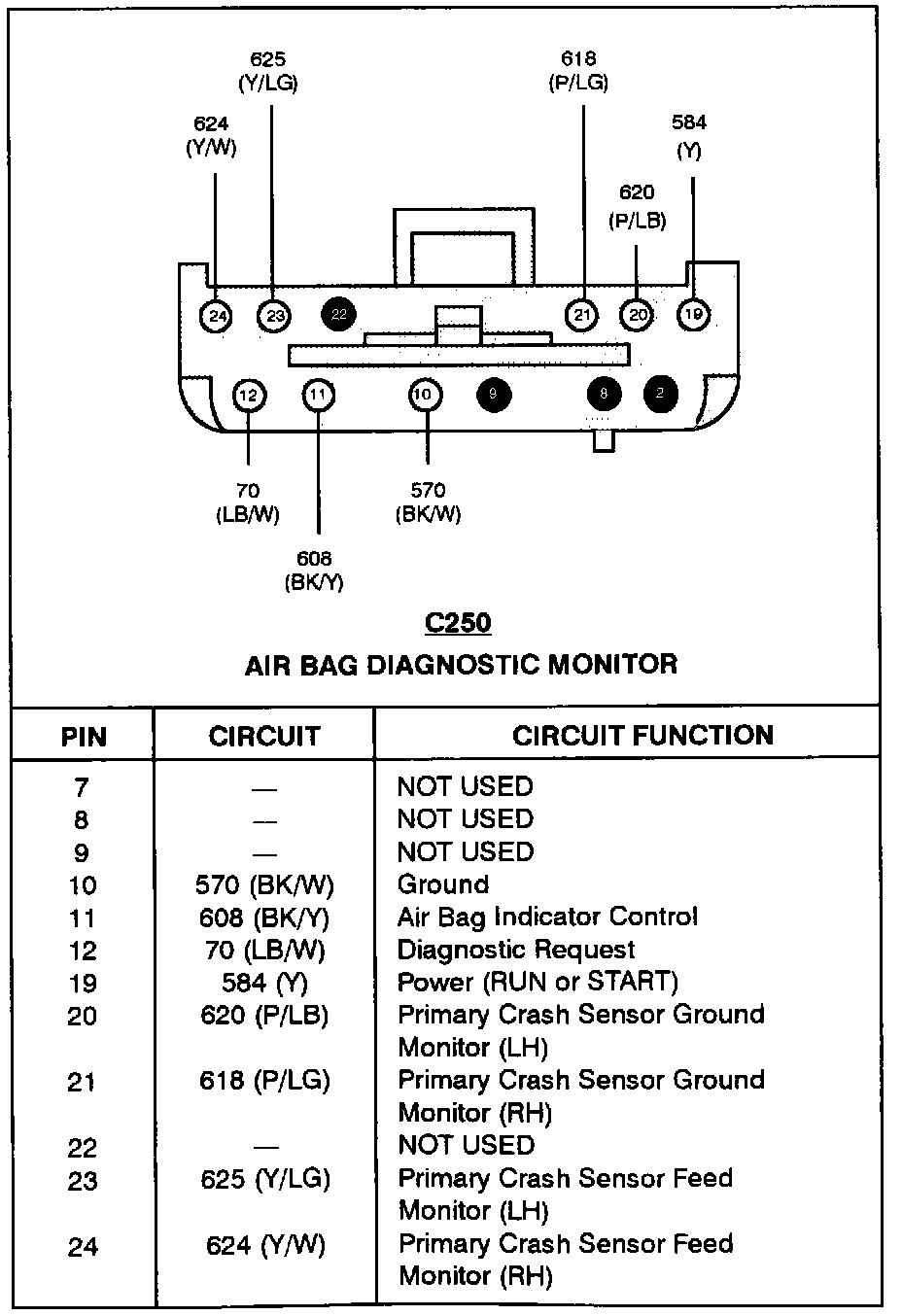

Air Bag Diagnostic Monitor Gray Connector (C250):
