System Specifications

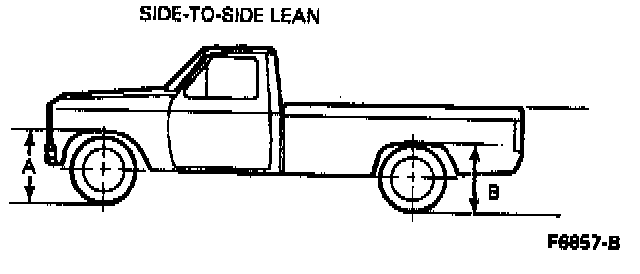

Lean (Side-to-Side Differences)
Front Wheelhouse Opening (Dimension A) 16 mm (5/8 Inch) Max.
Rear Wheelhouse Opening (Dimension B) 20 mm (3/4 Inch) Max.
