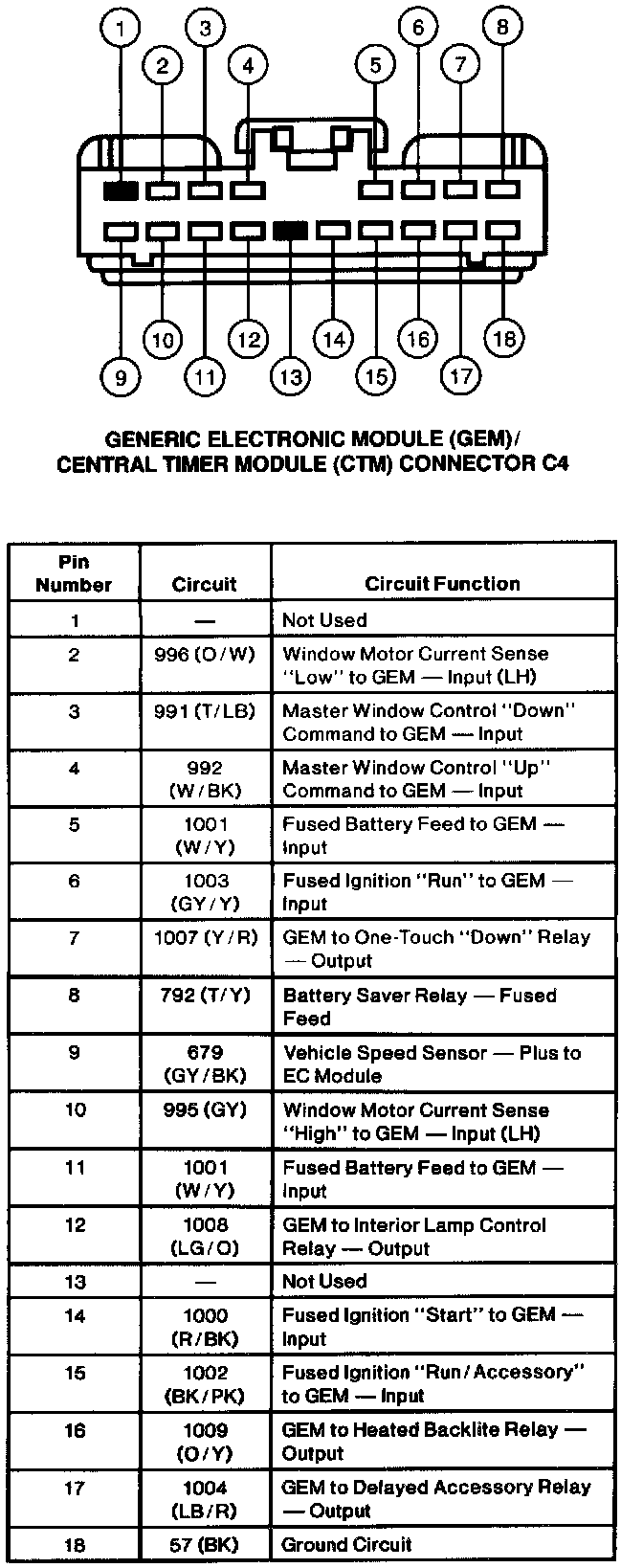

Generic Electronic Module/Central Control Module Connector C4
Generic Electronic Module/Central Control Module Connector C4
