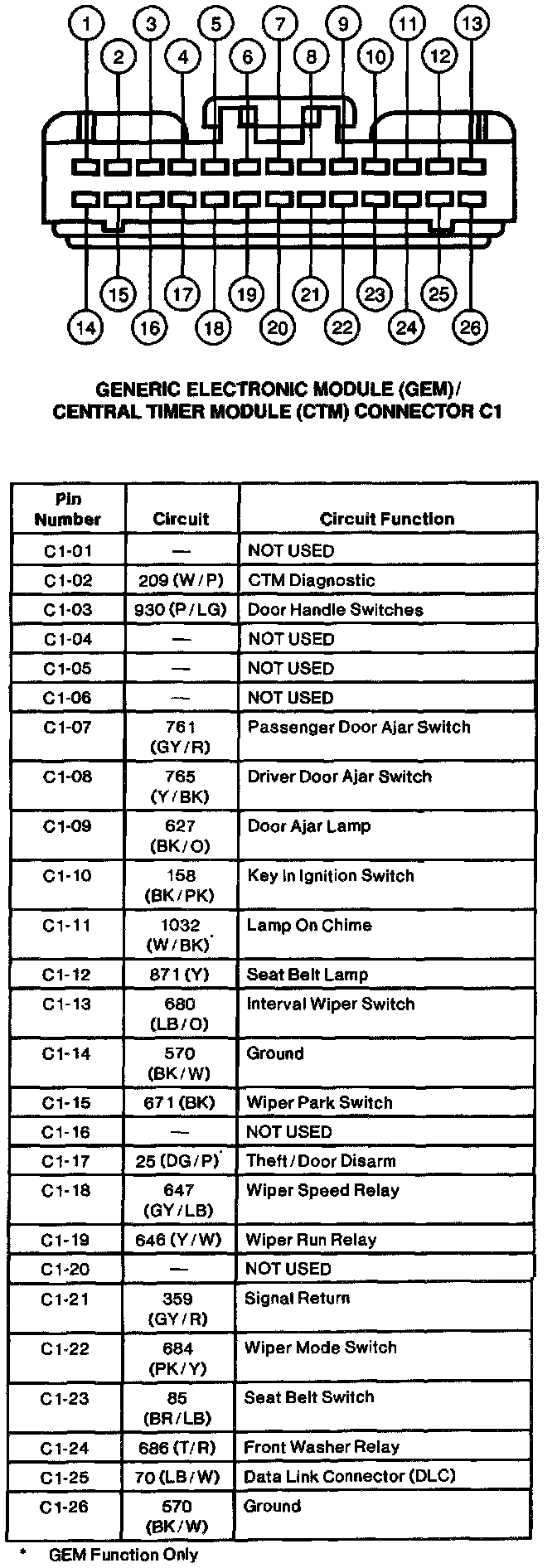

Generic Electronic Module/Central Timer Module Connector C1
Generic Electronic Module/Central Timer Module Connector C1
