Maintenance: Service and Repair

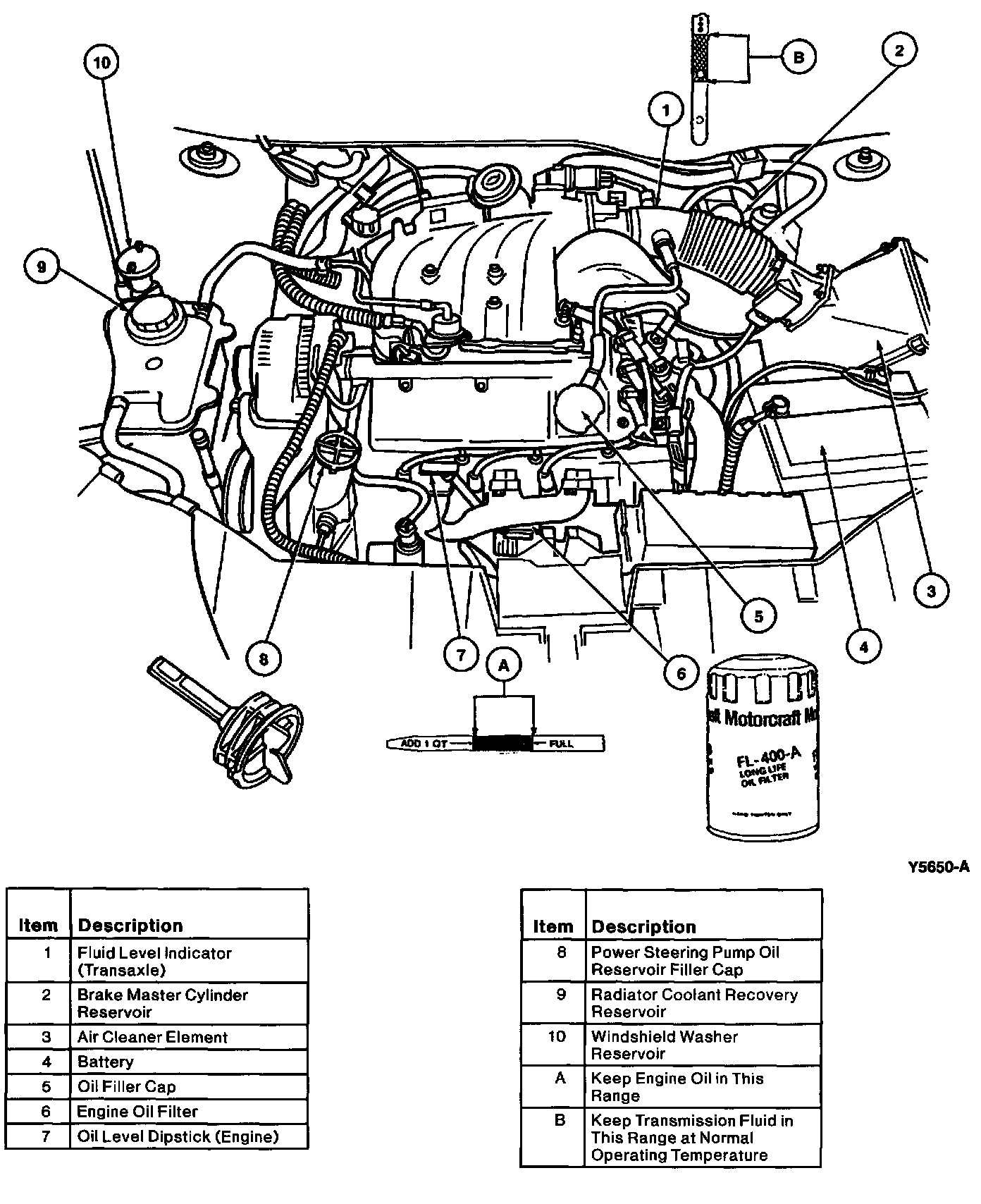

The illustrations show typical chassis and engine service and lubrication points. Vehicles with optional or special equipment may have slightly different or additional lubrication points.
