Vehicle Identification Number






The official Vehicle Identification Number (VIN) for title and registration purposes is stamped on a metal tab which is fastened to the instrument panel close to the windshield glass on the driver side of the vehicle and is visible from outside. The Vehicle Identification Number is also located on the vehicle certification label.

The Vehicle Identification Number is a 17-character alpha-numeric vehicle identification number This number is used for warranty identification of the vehicle and indicates the following:
- manufacturer
- type of restraint system
- line, series, body type
- engine
- model year
- assembly plant production sequence number

The last six digits of the vehicle identification number indicate the consecutive unit number of each unit built at each assembly plant. The consecutive unit numbers begin as follows:
- 000,001 through 599,999: Ford Division vehicles
- 600,001 through 999,999: Lincoln and Mercury Division vehicles

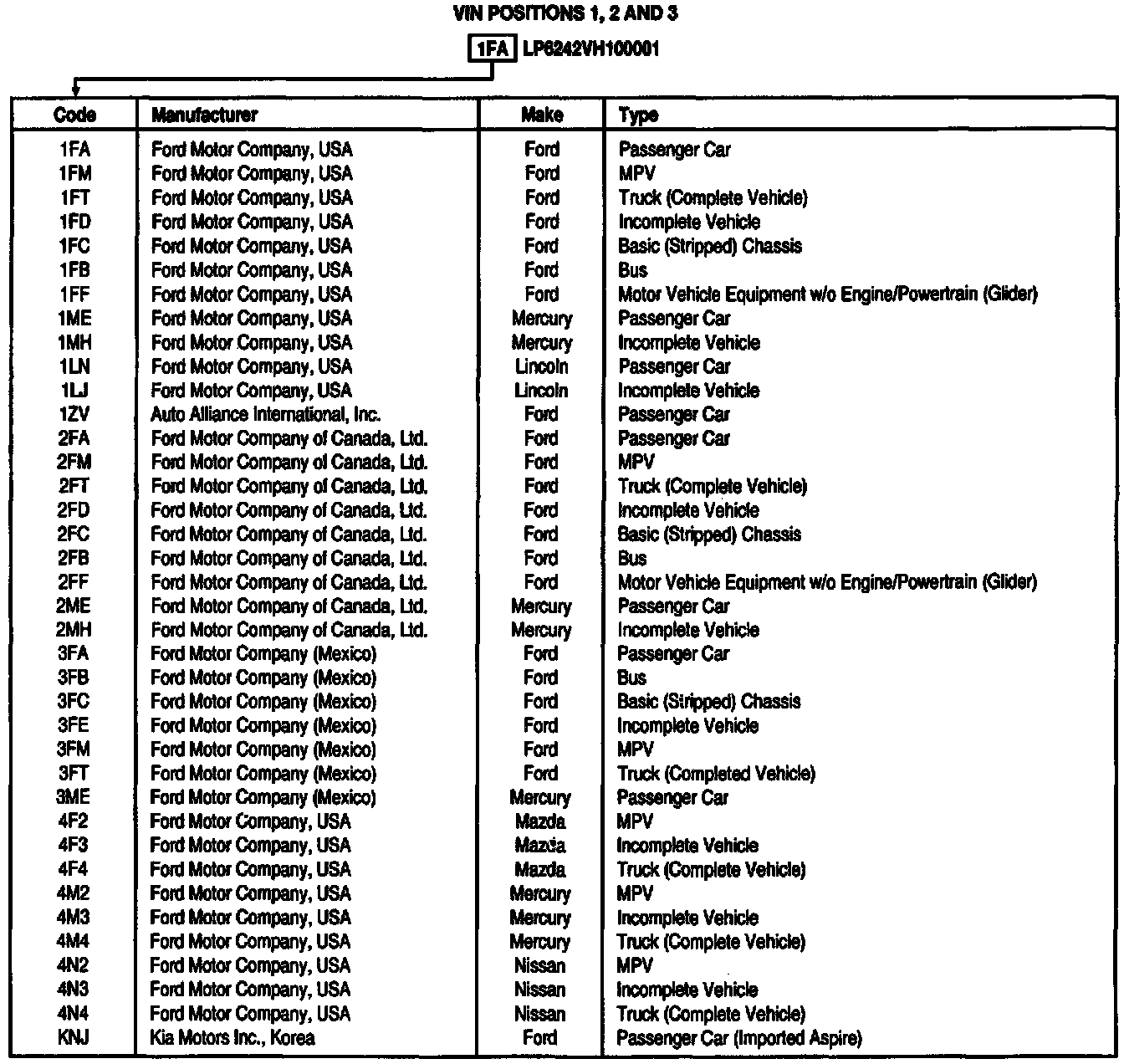

World Manufacturer Identifier

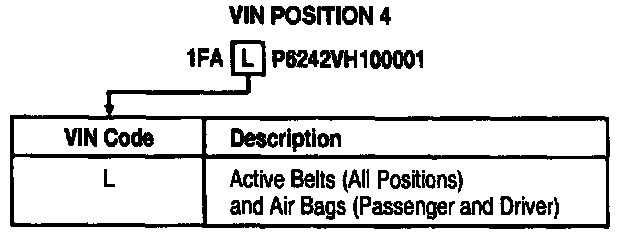

Restraint System Type

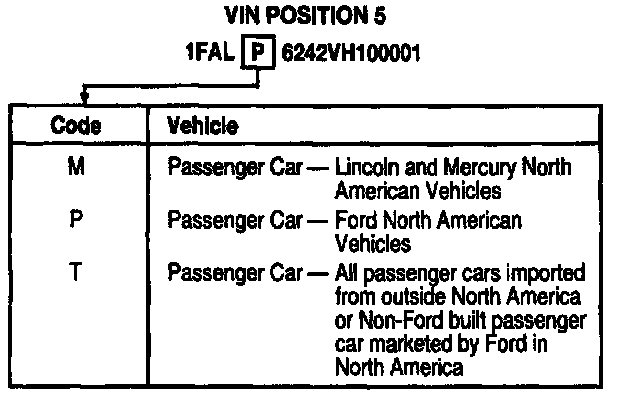

Manufacturer Specification

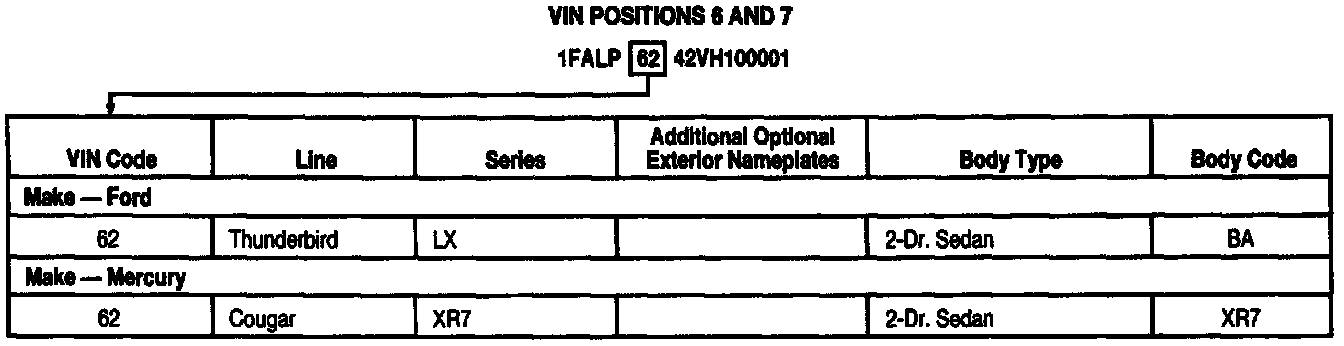

Line, Series, Body Type

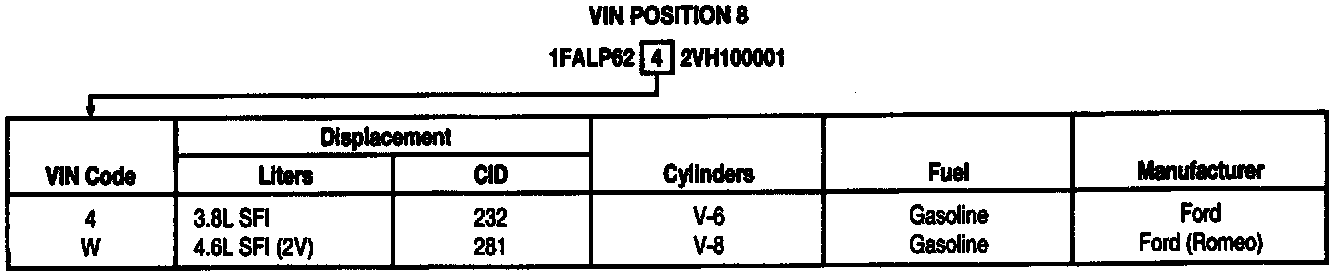

Engine Type







Check Digit

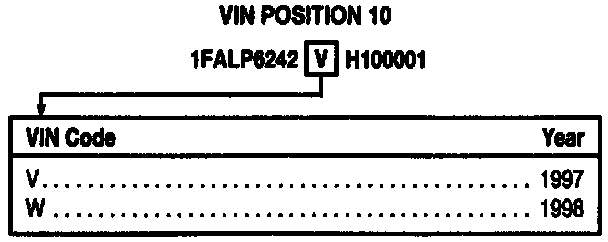

Vehicle Model Year

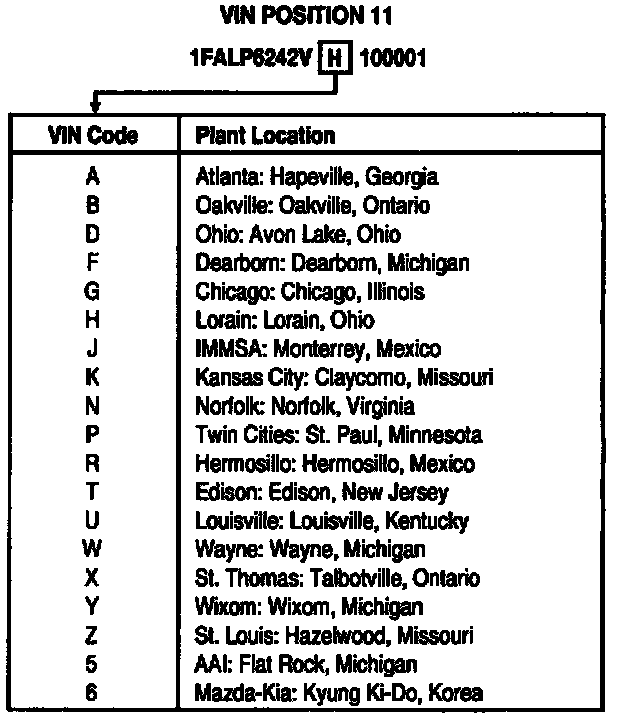

Assembly Plant

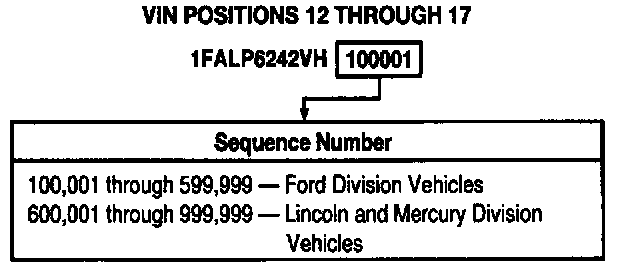

Production Sequence Number
